ADAU1467WBCPZ300RL - Analog Devices

Description: Audio DSPs 32bit SigmaDSP Audio 24K/80K

Download ADAU1467WBCPZ300RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADAU1467WBCPZ300RL - Analog Devices - PCB symbol
click to zoom

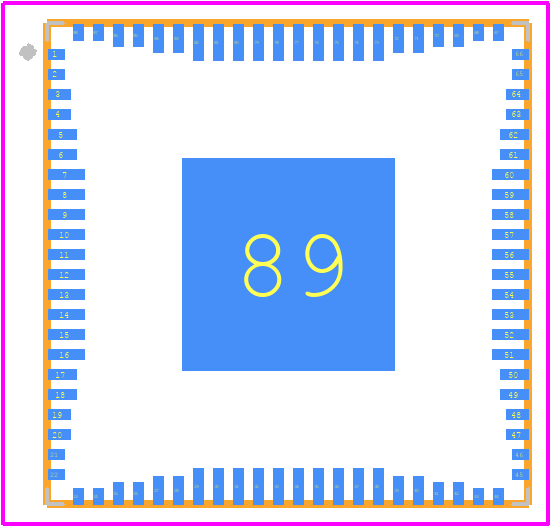

PCB Footprints
ADAU1467WBCPZ300RL - Analog Devices PCB footprint - Other - Other - ADAU1467WBCPZ300-3
click to zoom
3D Models
ADAU1467WBCPZ300RL - Analog Devices - 3D model - Other - ADAU1467WBCPZ300-3
click to zoom

ADAU1467WBCPZ300RL Details

  • Manufacturer Part Number:

    ADAU1467WBCPZ300RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-88

  • Pin Count:

    88

  • Manufacturer Package Code:

    CP-88-10

  • Country Of Origin:

    Singapore

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    DVDD SUPPLY OF 1.2V NOMINAL IS USED FOR DIGITAL CIRCUITRY

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N88

  • JESD-609 Code:

    e3

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    88

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    3.63 V

  • Supply Voltage-Min (Vsup):

    2.97 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    12 mm

ADAU1467WBCPZ300RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADAU1467WBCPZ300RL involves keeping analog and digital signals separate, using a solid ground plane, and minimizing signal trace lengths. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To optimize the performance of the ADAU1467WBCPZ300RL in a noisy environment, use a low-pass filter on the input signals, use a shielded enclosure, and keep the device away from sources of electromagnetic interference (EMI). Additionally, use a decoupling capacitor on the power supply lines and ensure good power supply filtering.
  • The recommended power-up sequence for the ADAU1467WBCPZ300RL is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and finally the clock signal. This ensures that the device powers up correctly and minimizes the risk of latch-up or other power-up related issues.
  • To troubleshoot issues with the ADAU1467WBCPZ300RL, start by checking the power supply voltages and ensuring that they are within the recommended range. Next, check the clock signal and ensure that it is stable and within the recommended frequency range. Then, use a logic analyzer or oscilloscope to verify that the digital signals are correct and that the device is not experiencing any errors or faults.
  • The recommended thermal management strategy for the ADAU1467WBCPZ300RL involves using a heat sink or thermal pad on the device, ensuring good airflow around the device, and keeping the device away from other heat sources. Additionally, ensure that the device is operated within the recommended temperature range to prevent overheating.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADAU1467WBCPZ300RL Overview

Use the download button to access the ADAU1467WBCPZ300RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADAU1, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
