ADAU1701JSTZ - Analog Devices

Description: ADAU1701JSTZ, Audio Processor 48-Pin LQFP

Download ADAU1701JSTZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

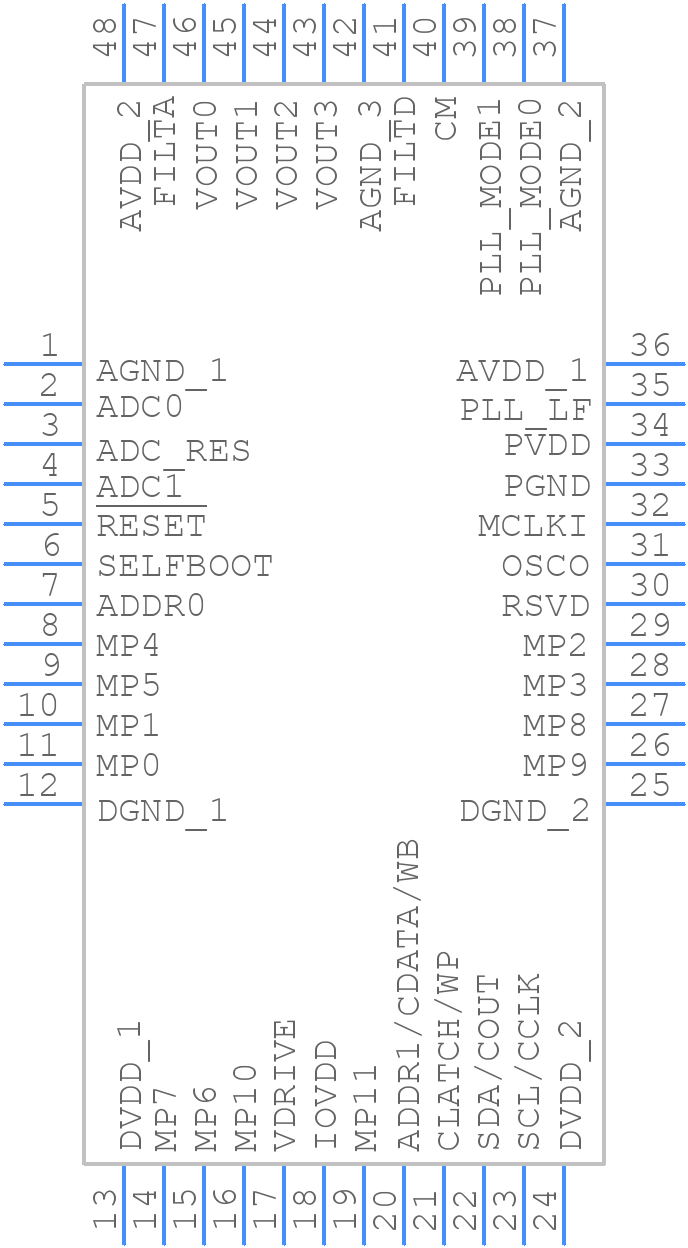

Symbol
ADAU1701JSTZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADAU1701JSTZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - (ST-48)
click to zoom
3D Models
ADAU1701JSTZ - Analog Devices - 3D model - Quad Flat Packages - (ST-48)
click to zoom

ADAU1701JSTZ Details

  • Manufacturer Part Number:

    ADAU1701JSTZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MS-026BBC, LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    ST-48

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max (Vsup):

    3.63 V

  • Supply Voltage-Min (Vsup):

    2.97 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

ADAU1701JSTZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog power supplies (AVDD and DVDD) before the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • The ADAU1701JSTZ can be configured using the SigmaStudio software, which provides a graphical user interface for designing and implementing audio processing algorithms. The software allows users to configure the device's signal flow, filter coefficients, and other parameters.
  • The maximum clock frequency for the ADAU1701JSTZ is 192 kHz. However, the device can also be operated at lower clock frequencies, such as 44.1 kHz or 48 kHz, depending on the specific application requirements.
  • The ADAU1701JSTZ supports a range of audio processing algorithms, including equalization, compression, and limiting. These algorithms can be implemented using the SigmaStudio software, which provides a library of pre-built algorithms and allows users to create custom algorithms using a block-diagram-based approach.
  • The latency of the ADAU1701JSTZ depends on the specific configuration and audio processing algorithms used. However, the device is designed to provide low latency, with a typical latency of around 1-2 ms.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADAU1701JSTZ Overview

Use the download button to access the ADAU1701JSTZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADAU1, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
