ADAU1772BCPZ - Analog Devices

Description: ADAU1772BCPZ, Audio Encoder & Decoder IC General Purpose Stereo-channel 24bit- 192ksps

Download ADAU1772BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

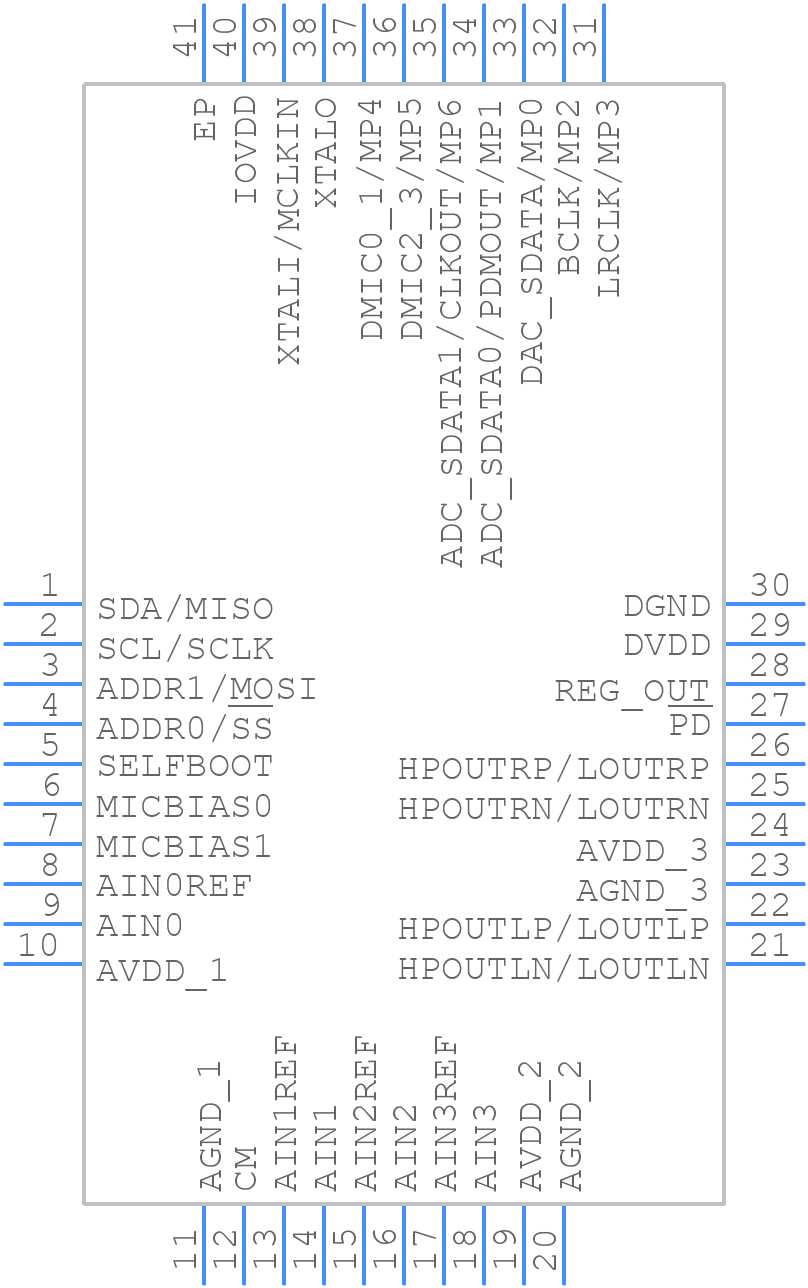

ADAU1772BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADAU1772BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-40-10)
click to zoom
3D Models
ADAU1772BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - (CP-40-10)
click to zoom

ADAU1772BCPZ Details

  • Manufacturer Part Number:

    ADAU1772BCPZ

  • Source Url Status Check Date:

    2013-05-01 14:56:34.511

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    6 X 6 MM, ROHS COMPLIANT, MO-220WJJD, LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-10

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.63 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

ADAU1772BCPZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog power supplies (AVDD and DVDD) before the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • The ADAU1772 can be configured using the SigmaStudio graphical development environment, which provides a user-friendly interface for designing and implementing audio processing algorithms. The software allows users to create and customize audio processing blocks, such as filters, amplifiers, and mixers.
  • The ADAU1772 supports clock frequencies up to 192 kHz, making it suitable for high-quality audio applications.
  • Yes, the ADAU1772 is designed to support multi-channel audio systems. It has multiple audio channels that can be configured to support various audio formats, such as stereo, 5.1 surround sound, or even more complex audio systems.
  • To ensure EMC with the ADAU1772, follow proper PCB design and layout guidelines, use shielding and grounding techniques, and ensure that the device is properly decoupled from the power supply. Additionally, follow the guidelines outlined in the ADAU1772 datasheet and application notes.
