ADAU1787BCBZRL7 - Analog Devices

Description: General Purpose Audio Codec 4ADC / 2DAC Ch 42-Pin WLCSP T/R

Download ADAU1787BCBZRL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

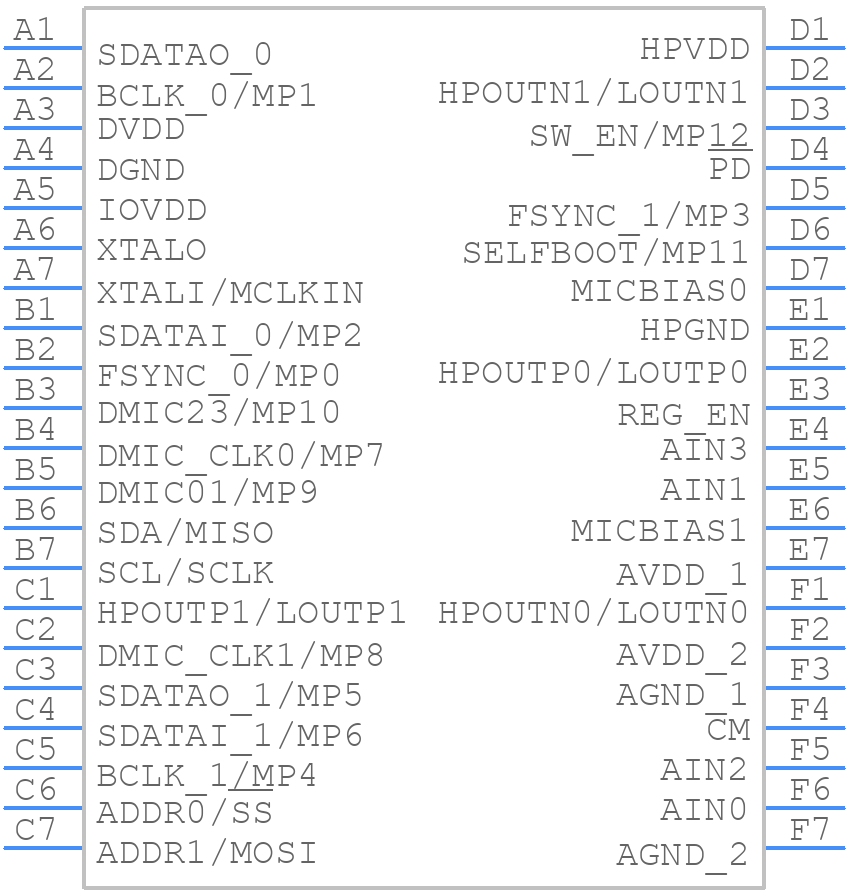

ADAU1787BCBZRL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADAU1787BCBZRL7 - Analog Devices PCB footprint - BGA - BGA - 42-Ball Wafer Level Chip Scale Package [WLCSP] (CB-42-2)
click to zoom
3D Models
ADAU1787BCBZRL7 - Analog Devices - 3D model - BGA - 42-Ball Wafer Level Chip Scale Package [WLCSP] (CB-42-2)
click to zoom

ADAU1787BCBZRL7 Details

  • Manufacturer Part Number:

    ADAU1787BCBZRL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    42

  • Manufacturer Package Code:

    CB-42-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • Moisture Sensitivity Level:

    1

ADAU1787BCBZRL7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog power supplies (AVDD and DVDD) first, followed by the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • The ADAU1787 can be configured using the SigmaStudio software, which provides a graphical user interface for designing and implementing audio processing algorithms. The software allows users to configure the ADAU1787's analog-to-digital converters, digital signal processing blocks, and digital-to-analog converters.
  • The maximum clock frequency for the ADAU1787 is 192 kHz, which is the maximum sampling frequency for the analog-to-digital converters.
  • Yes, the ADAU1787 can be used in a multi-channel audio application. It has multiple analog-to-digital converters and digital-to-analog converters, which can be configured to support multiple audio channels.
  • Troubleshooting issues with the ADAU1787 typically involves checking the power supplies, clock signals, and digital interfaces. The ADAU1787 also has built-in diagnostic features, such as a built-in self-test (BIST) function, which can help identify issues.
