ADAU1977WBCPZ-RL - Analog Devices

Description: Quad ADC with Diagnostics (10V Input)

Download ADAU1977WBCPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

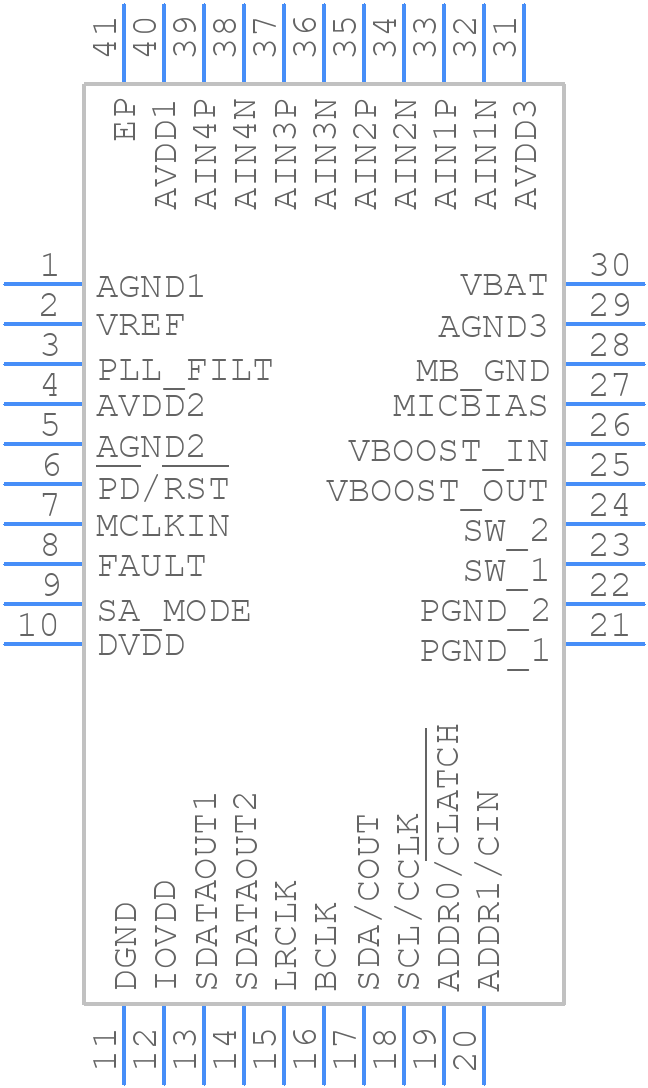

ADAU1977WBCPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADAU1977WBCPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-14
click to zoom
3D Models
ADAU1977WBCPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-14
click to zoom

ADAU1977WBCPZ-RL Details

  • Manufacturer Part Number:

    ADAU1977WBCPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-14

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-XQCC-N40

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

ADAU1977WBCPZ-RL Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog power supplies (AVDD and DVDD) before the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • The ADAU1977 can be configured using the SigmaStudio software, which provides a graphical user interface for designing and implementing audio processing algorithms. The software allows users to configure the ADAU1977's analog-to-digital converters, digital signal processing blocks, and digital-to-analog converters.
  • The maximum clock frequency for the ADAU1977 is 192 kHz. However, the actual clock frequency may be limited by the specific application and the clock source used.
  • The ADAU1977 can be interfaced with a microcontroller or DSP using a serial peripheral interface (SPI) or an inter-integrated circuit (I2C) interface. The specific interface used depends on the application requirements and the capabilities of the microcontroller or DSP.
  • The power consumption of the ADAU1977 depends on the specific configuration and operating conditions. However, the typical power consumption is around 300 mW when operating at a clock frequency of 48 kHz.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADAU1977WBCPZ-RL Overview

Use the download button to access the ADAU1977WBCPZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADAU1, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
