ADAU7002ACBZ-RL footprint, schematic symbol and 3D model by Analog Devices

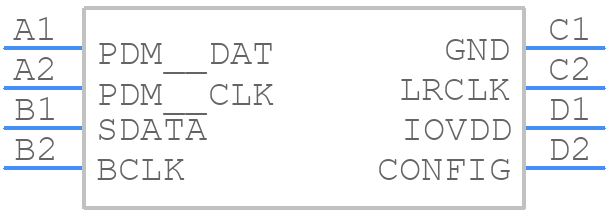

Symbol

click to zoom

PCB Footprints

ADAU7002ACBZ-RL - Analog Devices PCB footprint - BGA - BGA - 8-Ball Wafer Level Chip Scale Package [WLCSP] (CB-8-6)

click to zoom

3D Models

ADAU7002ACBZ-RL - Analog Devices - 3D model - BGA - 8-Ball Wafer Level Chip Scale Package [WLCSP] (CB-8-6)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ADAU7002ACBZ-RL
Part Number ADAU7002ACBZ-RL
Manufacturer Analog Devices
Pin Count 8
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 8-Ball Wafer Level Chip Scale Package [WLCSP] (CB-8-6)
Released Date May 19, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ADAU7002ACBZ-RL Details

Manufacturer Part Number:
ADAU7002ACBZ-RL
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
WLCSP-8
Pin Count:
8
Manufacturer Package Code:
CB-8-6
Country Of Origin:
Singapore
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Consumer IC Type:
CONSUMER CIRCUIT
JESD-30 Code:
R-PBGA-B8
JESD-609 Code:
e1
Length:
1.56 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
VFBGA
Package Equivalence Code:
BGA8,2X4,16
Package Shape:
RECTANGULAR
Package Style:
GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Qualification Status:
Not Qualified
Seated Height-Max:
0.56 mm
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form:
BALL
Terminal Pitch:
0.4 mm
Terminal Position:
BOTTOM
Width:
0.76 mm

ADAU7002ACBZ-RL Frequently Asked Questions (FAQs)

The recommended power-up sequence is to apply VDD first, followed by VCCI, and then the clock signal. This ensures proper initialization of the device.
To configure the ADAU7002 for stereo audio processing, connect the left and right audio channels to the corresponding inputs (AINL and AINR), and set the stereo mode bit (STMODE) in the control register to '1'.
The maximum clock frequency supported by the ADAU7002 is 50 MHz. However, the recommended clock frequency is 12.288 MHz for optimal performance.
To implement a digital volume control using the ADAU7002, use the programmable gain amplifier (PGA) blocks to adjust the gain of the audio signal. The PGA gain can be controlled through the control register.
The latency of the ADAU7002's audio processing pipeline is approximately 1.5 ms, which is the time it takes for the audio signal to propagate through the device's processing stages.
