ADAU7112ACBZR7 - Analog Devices

Description: Audio A/D Converter ICs 2-Ch PDM to PCM Converter

Download ADAU7112ACBZR7 Model

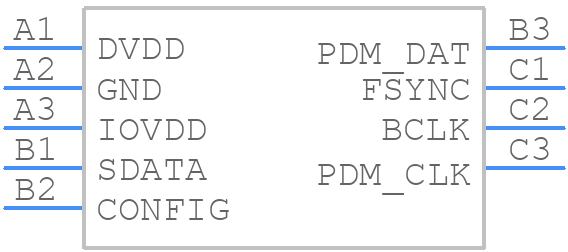

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADAU7112ACBZR7 - Analog Devices PCB footprint - BGA - BGA - CB-9-8
click to zoom
3D Models
ADAU7112ACBZR7 - Analog Devices  - 3D model - BGA - CB-9-8
click to zoom

ADAU7112ACBZR7 Details

  • Manufacturer Part Number:

    ADAU7112ACBZR7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-9

  • Pin Count:

    9

  • Manufacturer Package Code:

    CB-9-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PBGA-B9

  • Length:

    1.26 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA9,3X3,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.56 mm

  • Supply Voltage-Max (Vsup):

    1.98 V

  • Supply Voltage-Min (Vsup):

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.26 mm

ADAU7112ACBZR7 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VCCI, and then the clock signal. This ensures proper initialization of the device.
  • To optimize for low power, use the device's power-down modes, reduce the clock frequency, and minimize the number of active channels. Additionally, consider using the device's built-in power-saving features, such as the automatic power-down mode.
  • The ADAU7112 supports clock frequencies up to 50 MHz. However, the maximum clock frequency may vary depending on the specific application and system requirements.
  • Yes, the ADAU7112 can be used with a separate ADC. In this configuration, the ADC converts the analog signal, and the ADAU7112 processes the digital signal. Ensure proper synchronization and data formatting between the ADC and the ADAU7112.
  • The ADAU7112 is a programmable DSP, and you can implement custom DSP algorithms using the SigmaDSP programming software. You can also use the device's built-in DSP functions, such as filters, gain control, and limiters.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADAU7112ACBZR7 Overview

Use the download button to access the ADAU7112ACBZR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADAU7, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
