ADBMS1818ASWAZ-R7 - Analog Devices

Description: Battery Battery Monitor IC Multi-Chemistry 64-LQFP-EP (10x10) ,-40°C ~ 85°C , 3.0 mV ,6 µA

Download ADBMS1818ASWAZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADBMS1818ASWAZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

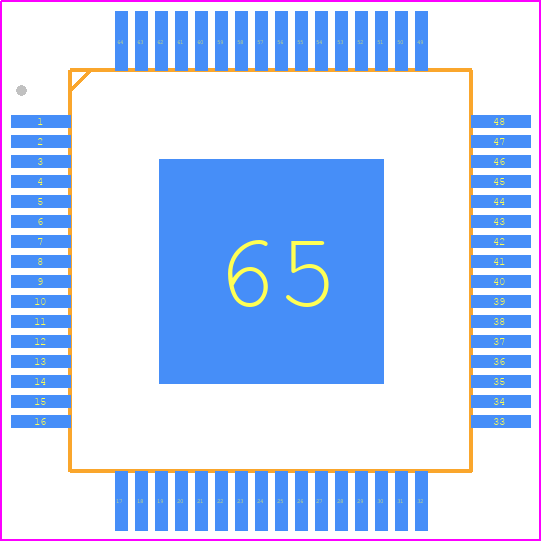

ADBMS1818ASWAZ-R7 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SW-64-2_2025-1.1
click to zoom
3D Models
ADBMS1818ASWAZ-R7 - Analog Devices - 3D model - Quad Flat Packages - SW-64-2_2025-1.1
click to zoom

ADBMS1818ASWAZ-R7 Details

  • Manufacturer Part Number:

    ADBMS1818ASWAZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    SW-64

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    Cascade Function:N;CTL:Y;Integrated MOSFET:Y;PS:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY MONITOR

  • JESD-30 Code:

    S-PQFP-G64

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    QFP64,.47SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max (Isup):

    16.5 mA

  • Supply Voltage-Max (Vsup):

    90 V

  • Supply Voltage-Min (Vsup):

    16 V

  • Supply Voltage-Nom (Vsup):

    60 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

ADBMS1818ASWAZ-R7 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout and thermal management guide in their application note AN-1329, which should be followed to ensure optimal performance and thermal dissipation.
  • The ADBMS1818ASWAZ-R7 is a highly configurable device. Configuration for different frequency bands can be achieved through the use of external resistors, capacitors, and inductors, as well as programming the device's internal registers. Refer to the device's programming guide and application notes for specific guidance.
  • The maximum power handling capability of the ADBMS1818ASWAZ-R7 is dependent on the specific application and operating conditions. However, according to the datasheet, the device can handle up to 30 dBm of input power. It's essential to consult the datasheet and application notes for specific guidance on power handling and thermal management.
  • Troubleshooting common issues with the ADBMS1818ASWAZ-R7 requires a systematic approach. Start by consulting the datasheet and application notes, then use tools such as oscilloscopes and spectrum analyzers to identify the root cause of the issue. Analog Devices also provides a range of technical support resources, including FAQs, application notes, and technical forums.
  • The recommended test and measurement equipment for characterizing the ADBMS1818ASWAZ-R7 include a vector network analyzer (VNA), a spectrum analyzer, and an oscilloscope. Additionally, a signal generator and a power meter may be required for specific tests. Consult the datasheet and application notes for specific guidance on test and measurement equipment.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADBMS1818ASWAZ-R7 Overview

Use the download button to access the ADBMS1818ASWAZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADBMS, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
