ADBMS1818ASWZ-R7 - Analog Devices

ADBMS1818ASWZ-R7 Details

• Manufacturer Part Number:

  ADBMS1818ASWZ-R7

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

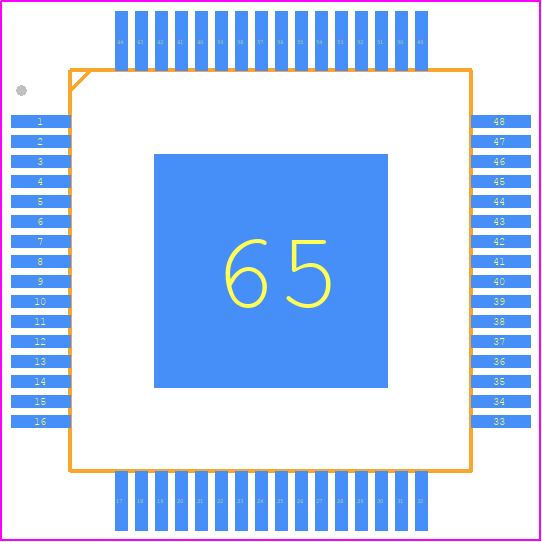

• Package Description:

  LQFP-64

• Pin Count:

  64

• Manufacturer Package Code:

  05-08-1982

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Additional Feature:

  Cascade Function:N;CTL:Y;Integrated MOSFET:Y;PS:N

• Adjustable Threshold:

  NO

• Analog IC - Other Type:

  BATTERY MONITOR

• JESD-30 Code:

  S-PQFP-G64

• Length:

  10 mm

• Moisture Sensitivity Level:

  3

• Number of Channels:

  18

• Number of Functions:

  1

• Number of Terminals:

  64

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HLFQFP

• Package Equivalence Code:

  QFP64,.47SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1.6 mm

• Supply Current-Max (Isup):

  16.5 mA

• Supply Voltage-Max (Vsup):

  90 V

• Supply Voltage-Min (Vsup):

  16 V

• Supply Voltage-Nom (Vsup):

  60 V

• Surface Mount:

  YES

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  10 mm
