- Part Number ADBMS2950BCCSZ
- Manufacturer Analog Devices
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - 48-Lead Plastic SS QFN
- Released Date Oct 22, 2024
- Last Modified Date Jan 7, 2025 11:09 AM UTC
- Pinout / Pin List Click Here (Member Only)
ADBMS2950BCCSZ Details
-
Manufacturer Part Number:
ADBMS2950BCCSZ
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Analog Devices Inc
-
YTEOL:
9
-
Analog IC - Other Type:
BATTERY MONITOR
-
Moisture Sensitivity Level:
3
ADBMS2950BCCSZ Frequently Asked Questions (FAQs)
-
Analog Devices provides a recommended PCB layout in the ADBMS2950BCCSZ evaluation board documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
-
Calibration is not required for the ADBMS2950BCCSZ, as it is a ratiometric sensor that provides a direct measurement of the magnetic field. However, it's essential to follow the recommended PCB layout and ensure proper shielding to minimize external interference.
-
The ADBMS2950BCCSZ is rated for operation from -40°C to +125°C, making it suitable for a wide range of industrial and automotive applications.
-
Yes, the ADBMS2950BCCSZ is designed to withstand high-vibration environments, with a rating of 10g peak acceleration. However, it's essential to ensure proper PCB mounting and mechanical design to minimize the effects of vibration on the sensor's performance.
-
The ADBMS2950BCCSZ provides a digital output that can be easily interfaced with a microcontroller or FPGA using a standard SPI or I2C interface. Analog Devices provides example code and interface guidelines in the product documentation.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
ADBMS2950BCCSZ Overview

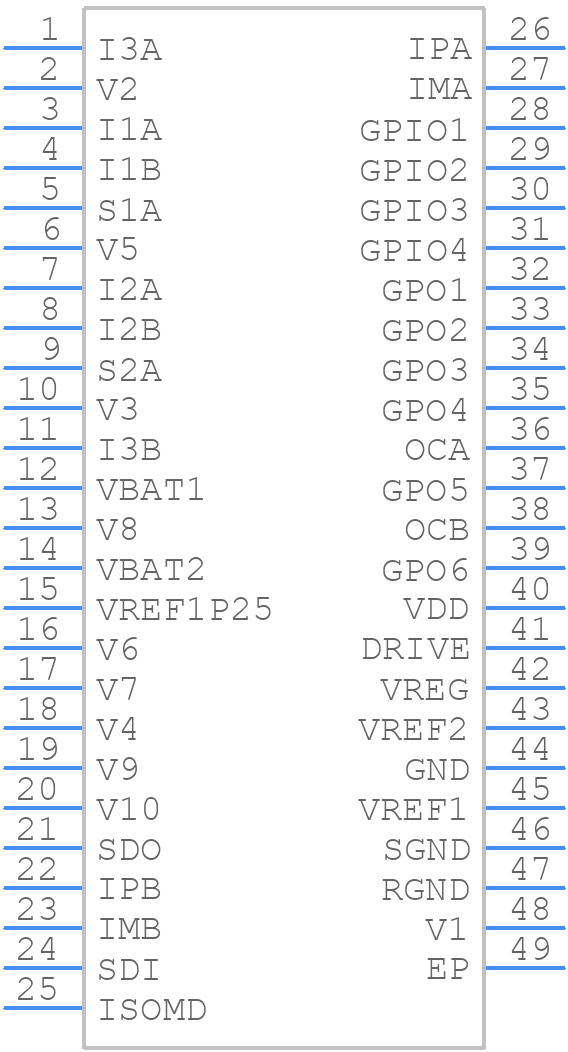

Use the download button to access the ADBMS2950BCCSZ schematic symbol, PCB footprint, and 3D model.
