ADBMS6830BCSWZ-RL - Analog Devices

ADBMS6830BCSWZ-RL Details

• Manufacturer Part Number:

  ADBMS6830BCSWZ-RL

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

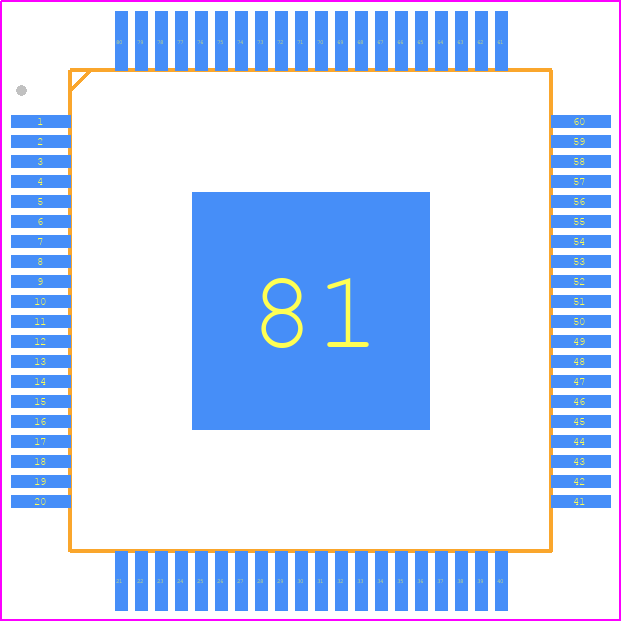

• Package Description:

  LQFP-80

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Adjustable Threshold:

  NO

• Analog IC - Other Type:

  BATTERY MONITOR

• JESD-30 Code:

  S-PQFP-G80

• Length:

  12 mm

• Moisture Sensitivity Level:

  3

• Number of Channels:

  16

• Number of Functions:

  1

• Number of Terminals:

  80

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HLFQFP

• Package Equivalence Code:

  QFP80,.6SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

• Seated Height-Max:

  1.6 mm

• Supply Current-Max (Isup):

  0.65 mA

• Supply Voltage-Max (Vsup):

  80 V

• Supply Voltage-Min (Vsup):

  11 V

• Supply Voltage-Nom (Vsup):

  40 V

• Surface Mount:

  YES

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  12 mm
