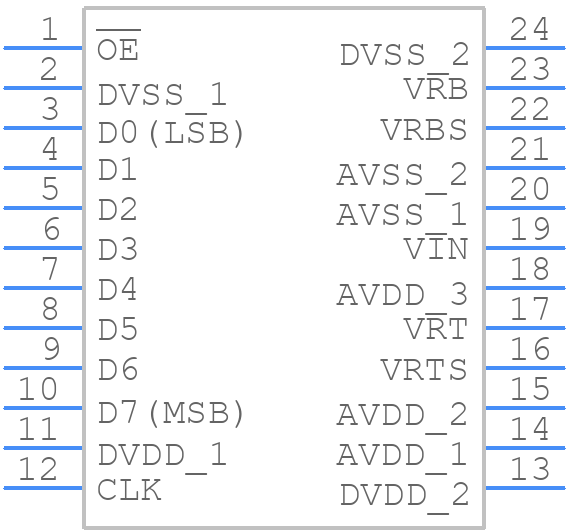

ADC1175CIMTCX/NOPB - Texas Instruments

ADC1175CIMTCX/NOPB Details

• Manufacturer Part Number:

  ADC1175CIMTCX/NOPB

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  TSSOP

• Package Description:

  TSSOP-24

• Pin Count:

  24

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.30

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  Peak-to-peak input voltage range(V) : 2

• Analog Input Voltage-Max:

  2 V

• Analog Input Voltage-Min:

  -2 V

• Conversion Time-Max:

  0.05 µs

• Converter Type:

  ADC, RESISTANCE LADDER

• JESD-30 Code:

  R-PDSO-G24

• JESD-609 Code:

  e3

• Length:

  7.8 mm

• Linearity Error-Max (EL):

  0.5078%

• Moisture Sensitivity Level:

  1

• Number of Analog In Channels:

  1

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  75 °C

• Operating Temperature-Min:

  -20 °C

• Output Bit Code:

  BINARY

• Output Format:

  PARALLEL, 8 BITS

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP24,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Sample Rate:

  20 MHz

• Sample and Hold / Track and Hold:

  SAMPLE

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4.4 mm
