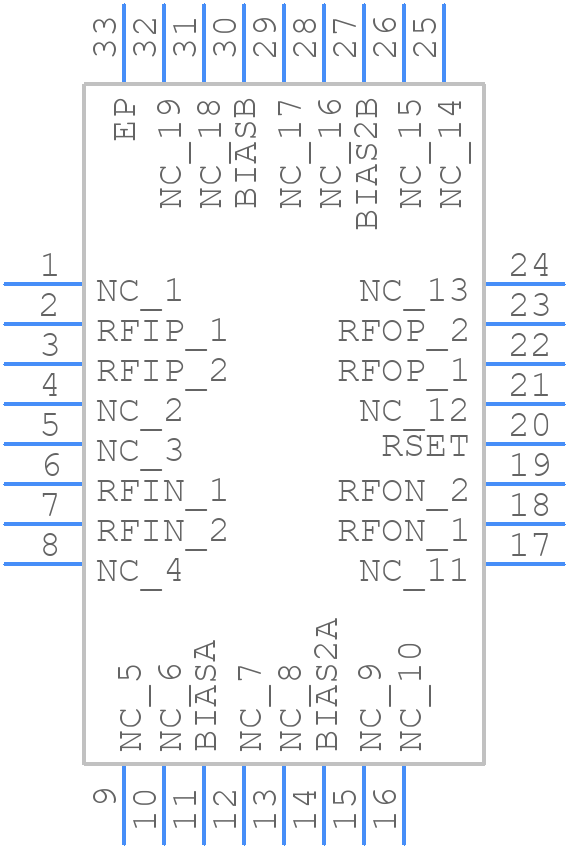

ADCA5191ACPZ - Analog Devices

ADCA5191ACPZ Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance?
  A good PCB layout for the ADCA5191ACPZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. It's also recommended to use a 4-layer PCB with a dedicated power plane and to follow Analog Devices' recommended layout guidelines.
• How do I optimize the power supply decoupling for this device?
  To optimize power supply decoupling, use a combination of ceramic and electrolytic capacitors with different values (e.g., 10nF, 100nF, and 10uF) placed close to the device's power pins. This will help to filter out high-frequency noise and ensure a stable power supply.
• What is the maximum clock frequency that can be used with this device?
  The ADCA5191ACPZ can operate with clock frequencies up to 100 MHz, but the maximum frequency depends on the specific application and the quality of the clock signal. It's recommended to consult the datasheet and application notes for more information on clock frequency limitations.
• How do I configure the device for optimal noise performance?
  To optimize noise performance, set the device's noise reduction mode (NR) to 'on' and adjust the noise filter cutoff frequency (NF) according to the specific application requirements. Additionally, ensure that the analog input signals are properly filtered and that the device is operated within its recommended operating conditions.
• What is the recommended operating temperature range for this device?
  The ADCA5191ACPZ is specified to operate over a temperature range of -40°C to +125°C, but the recommended operating temperature range is -20°C to +85°C for optimal performance and reliability.
