ADDAC80NZ-CBI-V - Analog Devices

Description: Analog Devices ADDAC80NZ-CBI-V, 12 bit Parallel DAC, 24-Pin PDIP

Download ADDAC80NZ-CBI-V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

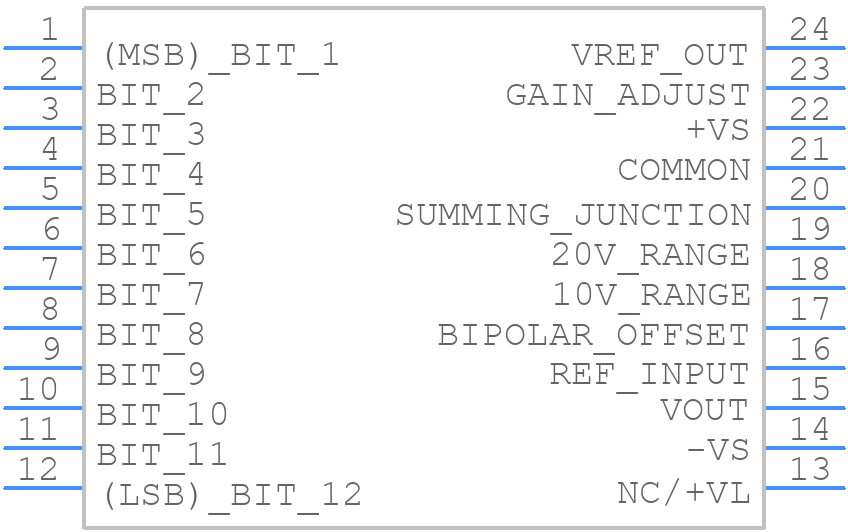

ADDAC80NZ-CBI-V - Analog Devices - PCB symbol
click to zoom
PCB Footprints

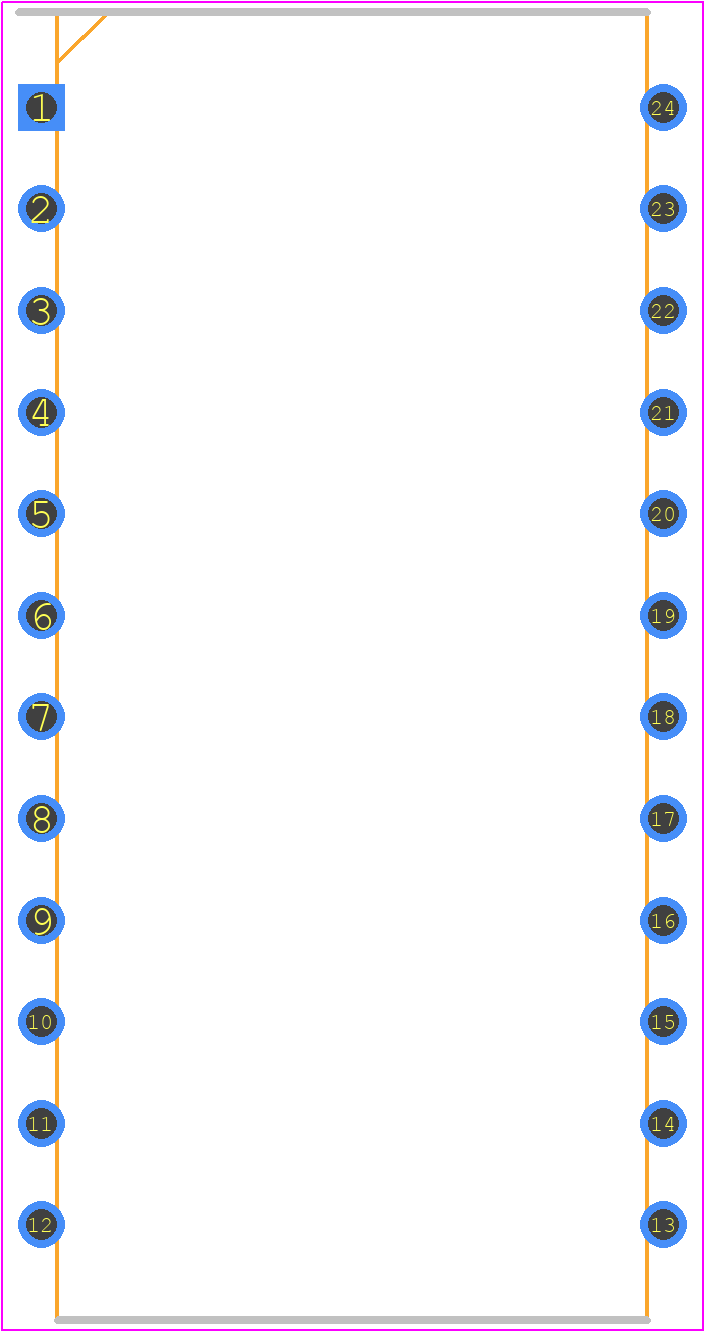

ADDAC80NZ-CBI-V - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 24-Pin Plastic DIP (N-24A) Package
click to zoom
3D Models
ADDAC80NZ-CBI-V - Analog Devices - 3D model - Dual-In-Line Packages - 24-Pin Plastic DIP (N-24A) Package
click to zoom

ADDAC80NZ-CBI-V Details

  • Manufacturer Part Number:

    ADDAC80NZ-CBI-V

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    N-24-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Linearity Error-Max (EL):

    0.012%

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Settling Time-Max:

    4 µs

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

ADDAC80NZ-CBI-V Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADDAC80NZ-CBI-V involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces to reduce noise and interference.
  • To ensure accurate temperature measurement, calibrate the device using a thermocouple or other temperature reference, and ensure that the device is properly soldered and connected to the PCB.
  • The ADDAC80NZ-CBI-V can handle clock frequencies up to 50 MHz, but it's recommended to use a clock frequency of 10 MHz or less for optimal performance.
  • The ADDAC80NZ-CBI-V is rated for operation up to 125°C, but it's recommended to derate the device's performance at high temperatures to ensure reliability and accuracy.
  • To troubleshoot issues with the ADDAC80NZ-CBI-V, check the power supply voltage, clock frequency, and input signals, and use a logic analyzer or oscilloscope to verify the device's output.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ADDAC80NZ-CBI-V Overview

Use the download button to access the ADDAC80NZ-CBI-V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADDAC, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
