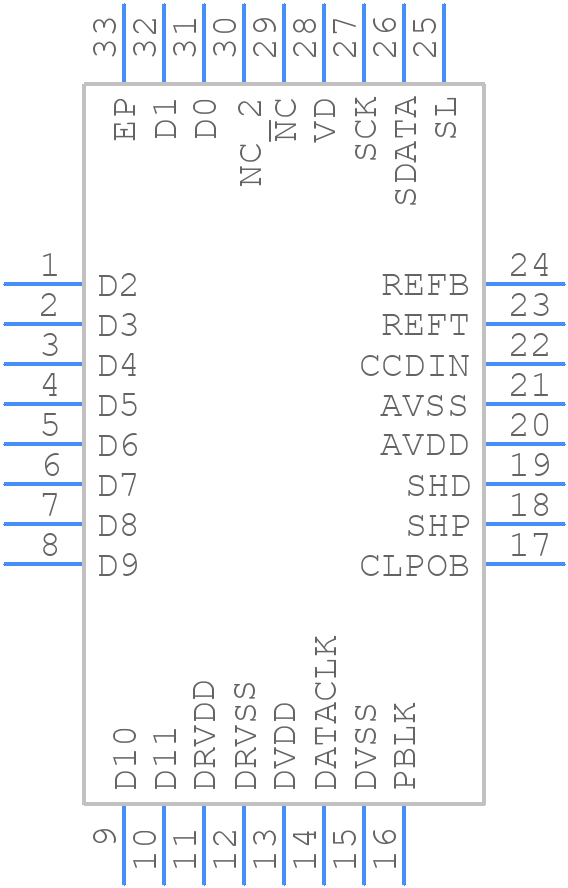

ADDI7100BCPZ - Analog Devices

ADDI7100BCPZ Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the ADDI7100BCPZ to minimize noise and ensure optimal performance?
  A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep analog and digital signals separate, and use a common mode filter to reduce noise.
• How do I ensure the ADDI7100BCPZ is properly calibrated for accurate measurements?
  Follow the calibration procedure outlined in the datasheet, which involves applying a known input signal and adjusting the internal calibration registers. Regular recalibration may be necessary depending on the application.
• What is the maximum clock frequency that can be used with the ADDI7100BCPZ?
  The maximum clock frequency is 100 MHz, but it's recommended to use a clock frequency of 50 MHz or less to ensure optimal performance and minimize jitter.
• Can the ADDI7100BCPZ be used in a multi-channel configuration, and if so, how?
  Yes, the ADDI7100BCPZ can be used in a multi-channel configuration by using multiple devices or by using a single device with a multiplexer. Consult the datasheet and application notes for more information.
• What is the recommended power-up sequence for the ADDI7100BCPZ to prevent damage or malfunction?
  Power up the device in the following sequence: AVDD, DVDD, and then CLK. Ensure that the power supplies are stable and within the recommended voltage range before applying the clock signal.
