ADE7769ARZ - Analog Devices

Description: Data Acquisition ADCs/DACs - Specialized Energy Meter IC w/ Intg Oscillator

Download ADE7769ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

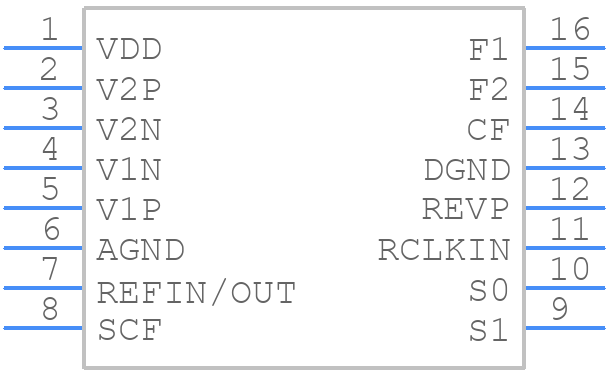

ADE7769ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADE7769ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16 (SOIC)
click to zoom
3D Models
ADE7769ARZ - Analog Devices - 3D model - Small Outline Packages - R-16 (SOIC)
click to zoom

ADE7769ARZ Details

  • Manufacturer Part Number:

    ADE7769ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP, SOP16,.25

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

ADE7769ARZ Frequently Asked Questions (FAQs)

  • The ADE7769ARZ is a high-frequency device, and proper layout and placement are crucial for optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connected to the high-frequency pins.
  • The ADE7769ARZ requires calibration for accurate energy measurement. The calibration process involves setting the gain and offset registers to compensate for the gain and offset errors of the device. The calibration procedure is described in the datasheet, and it is recommended to follow the procedure carefully to ensure accurate energy measurement.
  • The ADE7769ARZ can handle voltage and current inputs up to 1 kHz. However, the device can also measure harmonics up to the 40th harmonic of the fundamental frequency, which means it can measure frequencies up to 40 kHz.
  • The ADE7769ARZ is specified to operate within a temperature range of -40°C to +85°C. To ensure that the device operates within this range, it is recommended to provide adequate heat sinking and to avoid exposing the device to extreme temperatures. Additionally, the device has a built-in temperature sensor that can be used to monitor the device temperature.
  • The typical power consumption of the ADE7769ARZ is around 25 mW, but it can vary depending on the operating frequency and the mode of operation. The device has a low-power mode that can reduce the power consumption to around 10 mW.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADE7769ARZ Overview

Use the download button to access the ADE7769ARZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADE77, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
