ADE7913ARIZ - Analog Devices

Description: Two (ADE7912) or three (ADE7913) isolated, Σ-Δ analog-todigital converters (simultaneously sampling ADCs) Integrated isoPower, isolated dc-to-dc converter On-chip temperature sensor 4-wire SPI serial interface Up to 4 ADE7912/ADE7913 devices clocked from a single crystal or an external clock Synchronization of multiple ADE7912/ADE7913 devices ±31.25 mV peak input range for current channel ±500 mV peak input range for voltage channels Reference drift: 10 ppm/°C typical Single 3.3 V supply 20-lead,

Download ADE7913ARIZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

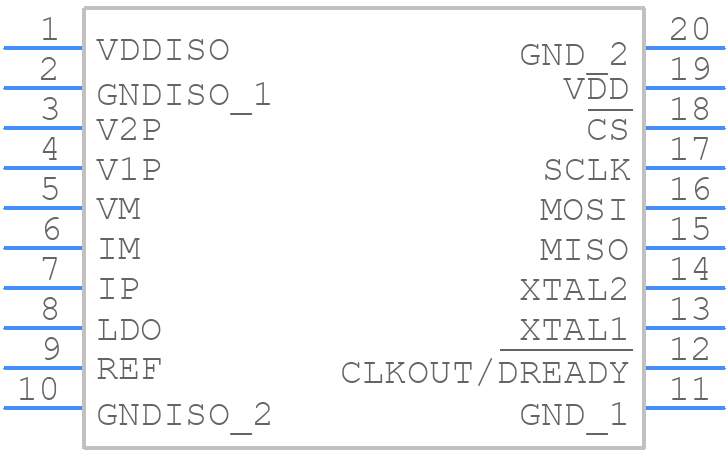

ADE7913ARIZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADE7913ARIZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RI-20-1)
click to zoom
3D Models
ADE7913ARIZ - Analog Devices - 3D model - Small Outline Packages - (RI-20-1)
click to zoom

ADE7913ARIZ Details

  • Manufacturer Part Number:

    ADE7913ARIZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RI-20-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    0.5 V

  • Analog Input Voltage-Min:

    -0.5 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    15.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    3

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.64 mm

  • Supply Current-Max:

    19 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADE7913ARIZ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the ADE7913ARIZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. It's also recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To optimize the performance of the ADE7913ARIZ in noisy environments, use a low-pass filter on the analog input signals, use a shielded cable for the analog input signals, and consider using a common-mode filter on the analog input signals. Additionally, ensure that the ADE7913ARIZ is properly decoupled and that the power supply is clean and stable.
  • The ADE7913ARIZ can handle analog input signals up to 100 kHz. However, the actual frequency limit may be lower depending on the specific application and the quality of the analog input signals.
  • The ADE7913ARIZ has an internal calibration circuit that can be used to calibrate the device. The calibration process involves applying a known input signal to the device and then using the calibration registers to adjust the gain and offset of the device. The calibration process should be performed at the same temperature and voltage supply as the normal operating conditions.
  • The power consumption of the ADE7913ARIZ depends on the specific operating conditions, but typically it is around 15 mW at 3.3 V supply voltage. The power consumption can be reduced by using the power-down mode or by reducing the clock frequency.
