ADE9112ARNZ - Analog Devices

Description: Sigma-Delta Modulator 24 b 32k SPI 28-SOIC-W-FP Isolated, Sigma-Delta ADCs with SPI

Download ADE9112ARNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

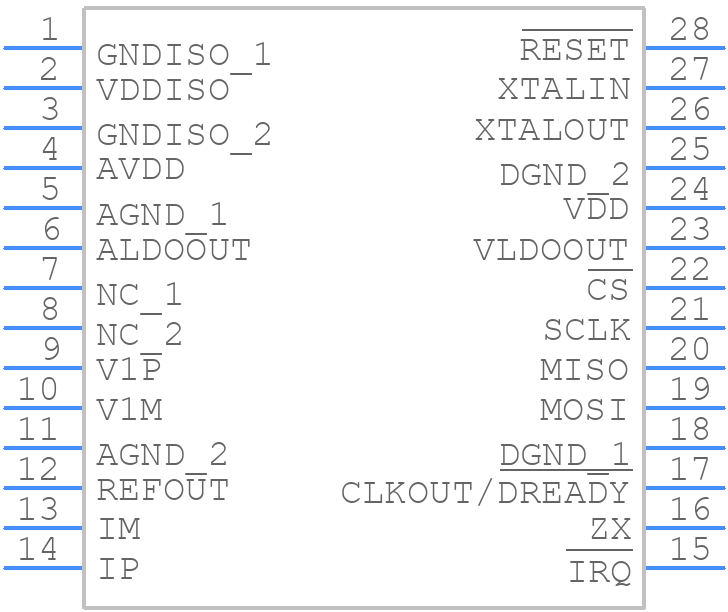

ADE9112ARNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADE9112ARNZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead Standard Small Outline, Wide Body, with Finer Pitch [SOIC_W_FP]
click to zoom
3D Models
ADE9112ARNZ - Analog Devices - 3D model - Small Outline Packages - 28-Lead Standard Small Outline, Wide Body, with Finer Pitch [SOIC_W_FP]
click to zoom

ADE9112ARNZ Details

  • Manufacturer Part Number:

    ADE9112ARNZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-28

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • Analog Input Voltage-Max:

    1 V

  • Analog Input Voltage-Min:

    -1 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G28

  • Length:

    10.2 mm

  • Number of Analog In Channels:

    2

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Sample Rate:

    0.032 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.64 mm

  • Supply Current-Max:

    13 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

ADE9112ARNZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADE9112ARNZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals.
  • Calibration of the ADE9112ARNZ involves adjusting the gain and offset of the device to match the specific application requirements. This can be done using the device's built-in calibration registers or through external calibration using a calibration resistor and a reference voltage source.
  • The ADE9112ARNZ can measure currents up to 20A, but it's recommended to derate the current measurement range based on the temperature and other application-specific factors to ensure accurate and reliable measurements.
  • Yes, the ADE9112ARNZ can be used for polyphase energy measurement by connecting multiple devices in a master-slave configuration. The master device can synchronize the measurements and calculate the total energy consumption.
  • The ADE9112ARNZ uses a proprietary algorithm to accurately measure energy in the presence of harmonic distortion. The device can handle up to 15th harmonic distortion in the input signal, making it suitable for use in applications with non-sinusoidal waveforms.
