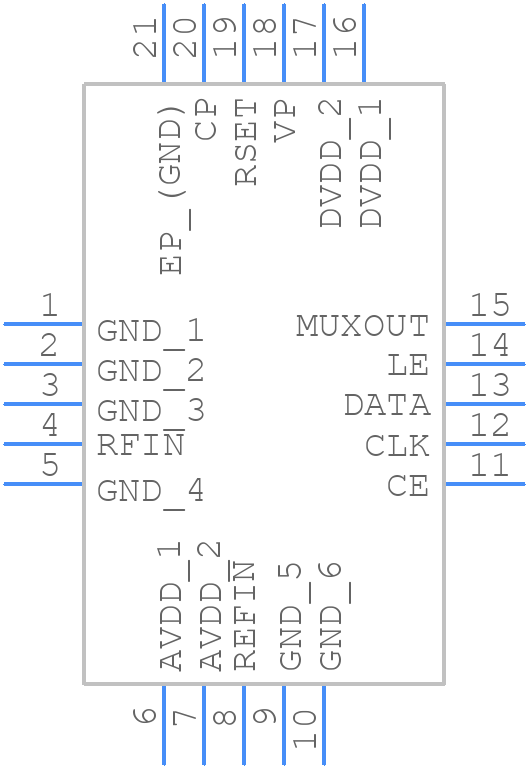

ADF41020BCPZ - Analog Devices

ADF41020BCPZ Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the ADF41020BCPZ to minimize noise and ensure optimal performance?
  A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the PLL loop filter components close to the device and use a low-ESR capacitor for the VCC pin. Avoid routing digital signals near the PLL loop filter components.
• How do I ensure the ADF41020BCPZ is properly powered up and initialized?
  Ensure a clean power-up sequence by applying VCC before applying a clock signal. Initialize the device by writing to the control registers in the correct sequence, as specified in the datasheet. Use the reset pin to reset the device if necessary.
• What is the maximum frequency deviation I can achieve with the ADF41020BCPZ?
  The maximum frequency deviation depends on the PLL loop bandwidth and the modulation frequency. The ADF41020BCPZ can achieve frequency deviations up to ±10 MHz with a modulation frequency of up to 100 kHz.
• How do I optimize the PLL loop filter for the ADF41020BCPZ?
  Optimize the PLL loop filter by selecting the correct values for the resistors and capacitors based on the desired loop bandwidth and phase margin. Use the ADIsimPLL tool or consult the datasheet for guidance on selecting the optimal component values.
• What is the recommended clock signal for the ADF41020BCPZ?
  A low-jitter clock signal with a frequency between 10 MHz and 200 MHz is recommended. The clock signal should have a duty cycle of 40% to 60% and a rise/fall time of less than 5 ns.
