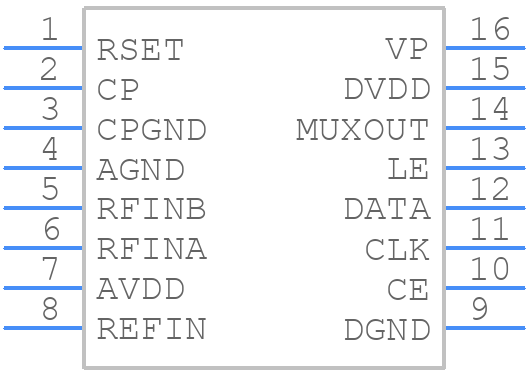

ADF4106BRUZ-RL - Analog Devices

ADF4106BRUZ-RL Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the ADF4106BRUZ-RL to minimize noise and ensure optimal performance?
  A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the PLL loop filter components close to the device and use a low-ESR capacitor for the VCC pin. Avoid routing digital signals near the PLL loop filter components.
• How do I ensure the ADF4106BRUZ-RL is properly powered up and initialized?
  Ensure a clean power-up sequence by applying VCC before the digital control voltage (DVCC). Initialize the device by writing to the control registers in the correct sequence, as specified in the datasheet. Use a reset signal to ensure a known state after power-up.
• What is the recommended method for programming the ADF4106BRUZ-RL's registers?
  Use a 3-wire serial interface (SPI) to program the registers. Ensure the CS (chip select) pin is low during programming, and use a clock frequency of up to 20 MHz. Use the datasheet-provided register maps and programming sequences to avoid errors.
• How do I optimize the ADF4106BRUZ-RL's phase noise performance?
  Use a high-quality crystal oscillator with a low phase noise specification. Ensure the PLL loop filter components are of high quality and properly matched. Optimize the charge pump current and loop filter component values for the specific application.
• What is the maximum operating frequency of the ADF4106BRUZ-RL?
  The ADF4106BRUZ-RL can operate up to 6.4 GHz. However, the maximum operating frequency may be limited by the specific application, PCB layout, and component selection.
