ADF4151BCPZ - Analog Devices

Description: Analog Devices ADF4151BCPZ, PLL Frequency Synthesizer, Maximum of 750 MHz, 32-Pin LFCSP

Download ADF4151BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

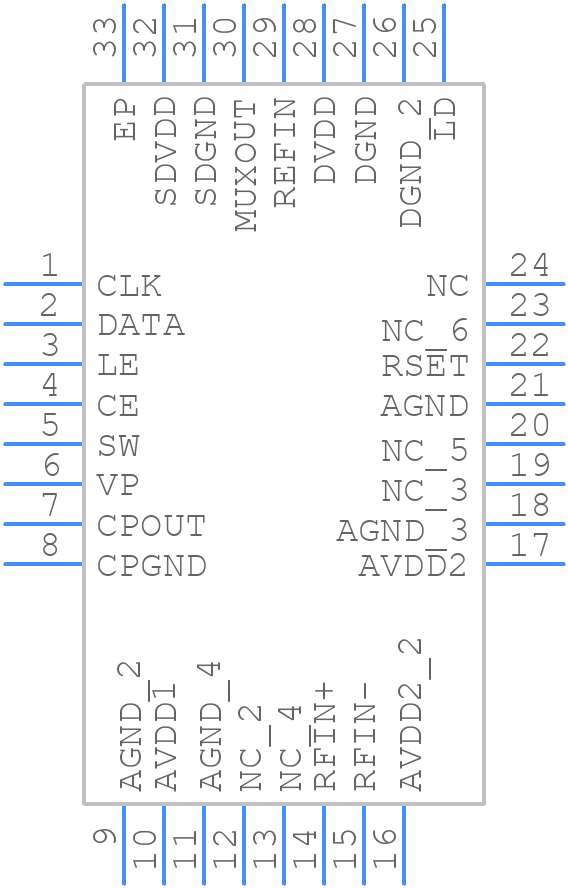

ADF4151BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4151BCPZ - Analog Devices PCB footprint - Other - Other - QFN50P500X500X80-33N
click to zoom
3D Models
ADF4151BCPZ - Analog Devices - 3D model - Other - QFN50P500X500X80-33N
click to zoom

ADF4151BCPZ Details

  • Manufacturer Part Number:

    ADF4151BCPZ

  • Source Url Status Check Date:

    2013-05-01 14:56:35.647

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    5 X 5 MM, ROHS COMPLIANT, MO-220WHHD, LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-7

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    50 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADF4151BCPZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then the digital supply (DVDD). This ensures that the analog and digital sections of the device are powered up correctly.
  • The loop filter component values can be optimized using the ADF4151 evaluation board software or by using the Analog Devices PLL Loop Filter Design Tool. These tools can help you determine the optimal component values based on your specific application requirements.
  • The maximum frequency deviation that can be achieved with the ADF4151BCPZ is ±50% of the reference frequency. However, the actual frequency deviation achievable in a specific application may be limited by the phase detector frequency, the charge pump current, and the loop filter component values.
  • To ensure stable and reliable operation, it is essential to follow the recommended PCB layout guidelines, use a low-noise power supply, and decouple the device properly. Additionally, the device should be operated within the recommended operating conditions, and the loop filter component values should be optimized for the specific application.
  • Yes, the ADF4151BCPZ can be used as a fractional-N PLL. The device has a 24-bit fractional modulus, which allows for fine frequency resolution and enables the device to be used in fractional-N PLL applications.
