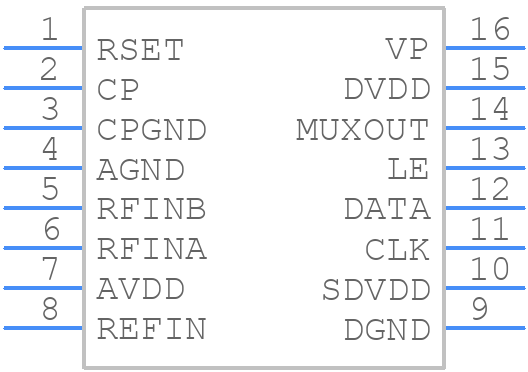

ADF4154BRUZ - Analog Devices

ADF4154BRUZ Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the ADF4154BRUZ to minimize noise and ensure optimal performance?
  A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF signal traces short and away from the digital signal traces. Use a common mode filter or a pi-filter to reduce noise and EMI.
• How do I optimize the loop filter design for the ADF4154BRUZ to achieve the best phase noise performance?
  Use the ADIsimPLL tool to design the loop filter. The tool helps to optimize the loop filter components for the desired phase noise performance. Also, ensure that the loop filter components are placed close to the ADF4154BRUZ to minimize parasitic inductance and capacitance.
• What is the maximum frequency deviation that can be achieved with the ADF4154BRUZ?
  The maximum frequency deviation that can be achieved with the ADF4154BRUZ is ±50% of the reference frequency. However, the actual frequency deviation may be limited by the PLL loop bandwidth and the VCO tuning range.
• How do I troubleshoot issues with the ADF4154BRUZ, such as failure to lock or poor phase noise performance?
  Use a spectrum analyzer to measure the output frequency spectrum and check for spurs or noise. Verify that the reference clock is stable and within the recommended frequency range. Check the PLL loop filter components and ensure that they are properly soldered and placed close to the ADF4154BRUZ.
• Can I use the ADF4154BRUZ with a different reference clock frequency than the recommended 10 MHz?
  Yes, the ADF4154BRUZ can be used with a different reference clock frequency. However, the PLL loop filter components may need to be adjusted to ensure optimal performance. Use the ADIsimPLL tool to design the loop filter for the desired reference clock frequency.
