ADF4156BRUZ - Analog Devices

Description: ADF4156BRUZ, PLL Frequency Synthesizer, 16-Pin CP 20 1

Download ADF4156BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

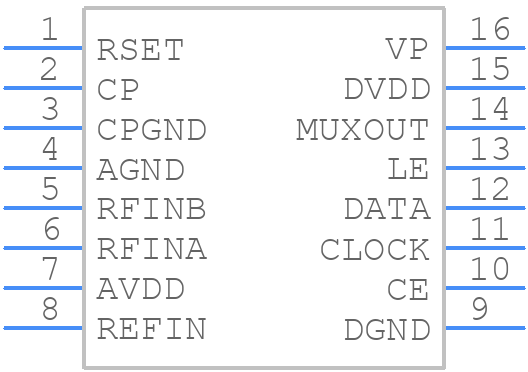

ADF4156BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4156BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Thin Shrink Small Outline Package [TSSOP
click to zoom
3D Models
ADF4156BRUZ - Analog Devices - 3D model - Small Outline Packages - 16-Lead Thin Shrink Small Outline Package [TSSOP
click to zoom

ADF4156BRUZ Details

  • Manufacturer Part Number:

    ADF4156BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    32 mA

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADF4156BRUZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADF4156BRUZ involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing the length of the clock input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The charge pump voltage for the ADF4156BRUZ can be optimized by adjusting the RSET resistor value. A lower RSET value increases the charge pump voltage, while a higher RSET value decreases it. The optimal RSET value depends on the specific application and frequency range.
  • The maximum frequency deviation that can be achieved with the ADF4156BRUZ depends on the specific configuration and application. However, in general, the device can achieve frequency deviations of up to ±50 ppm or more, depending on the crystal oscillator frequency and the modulation frequency.
  • To ensure proper synchronization with an external clock source, the ADF4156BRUZ requires a clock signal that meets the device's input clock requirements. The clock signal should be a clean, stable signal with a frequency that is within the device's specified input clock frequency range.
  • The recommended power-up sequence for the ADF4156BRUZ involves applying power to the device in the following order: VDD, AVDD, and DVDD. This ensures that the device powers up correctly and minimizes the risk of latch-up or other power-related issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF4156BRUZ Overview

Use the download button to access the ADF4156BRUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF41, or try a keyword search, such as PLL or Frequency Synthesis Circuits
