ADF4158WCCPZ-RL7 - Analog Devices

Description: Phase Locked Loops - PLL 6 GHz Direct Modualtion frac-N PLL Synth

Download ADF4158WCCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

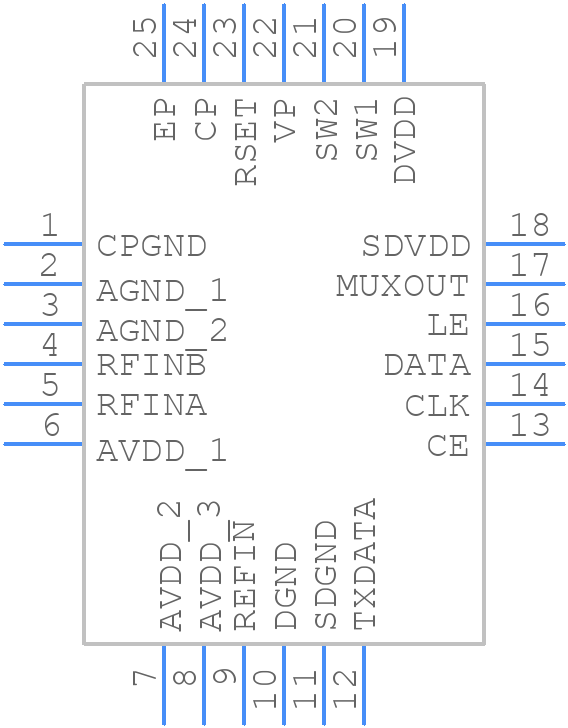

ADF4158WCCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4158WCCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-7 (LFCSP)
click to zoom
3D Models
ADF4158WCCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-24-7 (LFCSP)
click to zoom

ADF4158WCCPZ-RL7 Details

  • Manufacturer Part Number:

    ADF4158WCCPZ-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:35.841

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-7

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-PQCC-N24

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Supply Current-Max (Isup):

    32 mA

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

ADF4158WCCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADF4158WCCPZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the voltage regulator. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog ground and another for the digital ground.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves writing specific values to the device's registers. It's also important to ensure that the device is properly powered and that the reference clock is stable and accurate.
  • When selecting loop filter component values, consider the desired phase noise performance, loop bandwidth, and stability. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the specific application requirements and measured performance.
  • To troubleshoot issues with the ADF4158WCCPZ-RL7, start by verifying that the device is properly powered and configured. Check the reference clock frequency and stability, and ensure that the loop filter components are properly selected. Use a spectrum analyzer to measure the frequency output and phase noise performance, and consult the datasheet and application notes for guidance on troubleshooting common issues.
  • The ADF4158WCCPZ-RL7 is a high-frequency device that can generate heat, so it's essential to ensure proper thermal management. Use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device. Follow the recommended operating temperature range and derating guidelines outlined in the datasheet to ensure reliable operation over temperature.
