ADF4159WCCPZ - Analog Devices

Description: Phase Locked Loops - PLL 13GHz Fast Ramp Direct Mod Frac N PLL

Download ADF4159WCCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

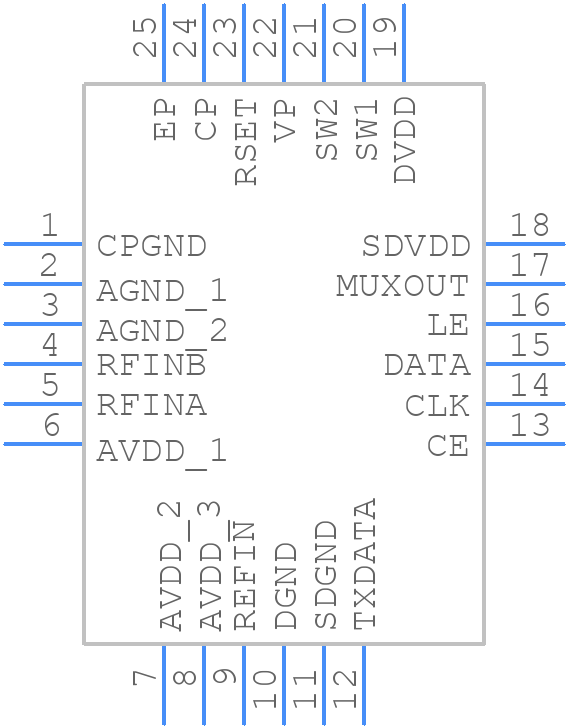

Symbol
ADF4159WCCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4159WCCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-24-10
click to zoom
3D Models
ADF4159WCCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-24-10
click to zoom

ADF4159WCCPZ Details

  • Manufacturer Part Number:

    ADF4159WCCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-10

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    PHASE DETECTOR

  • JESD-30 Code:

    S-PQCC-N24

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Supply Current-Max (Isup):

    40 mA

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

ADF4159WCCPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADF4159WCCPZ involves keeping the RF signal paths as short as possible, using a solid ground plane, and separating the analog and digital sections of the board. Additionally, it's recommended to use a 4-layer board with a dedicated layer for the RF signal, a layer for the analog power supply, a layer for the digital power supply, and a layer for the ground plane.
  • To optimize the ADF4159WCCPZ for low phase noise performance, it's recommended to use a high-quality crystal oscillator, ensure a stable power supply, and minimize the noise on the control voltage lines. Additionally, the device's internal voltage regulator can be bypassed with an external low-noise voltage regulator to further reduce phase noise.
  • The ADF4159WCCPZ can operate up to a maximum frequency of 4.4 GHz, but the actual frequency range achievable depends on the specific application and the quality of the external components used. In general, the device can be used to generate frequencies up to 3.5 GHz with a reasonable phase noise performance.
  • The ADF4159WCCPZ can be programmed using a 3-wire serial interface. The device has a 32-bit R-counter, a 15-bit N-counter, and a 12-bit phase value that need to be programmed to generate a specific frequency. The programming sequence involves writing the desired values to the corresponding registers using the serial interface.
  • The typical power consumption of the ADF4159WCCPZ is around 55 mA at a supply voltage of 3.3 V. However, the actual power consumption can vary depending on the specific application, the frequency of operation, and the output power level.
