ADF4169CCPZ - Analog Devices

Description: Analog Devices ADF4169CCPZ, PLL Frequency Synthesizer, Maximum of 130 MHz, 24-Pin LFCSP

Download ADF4169CCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

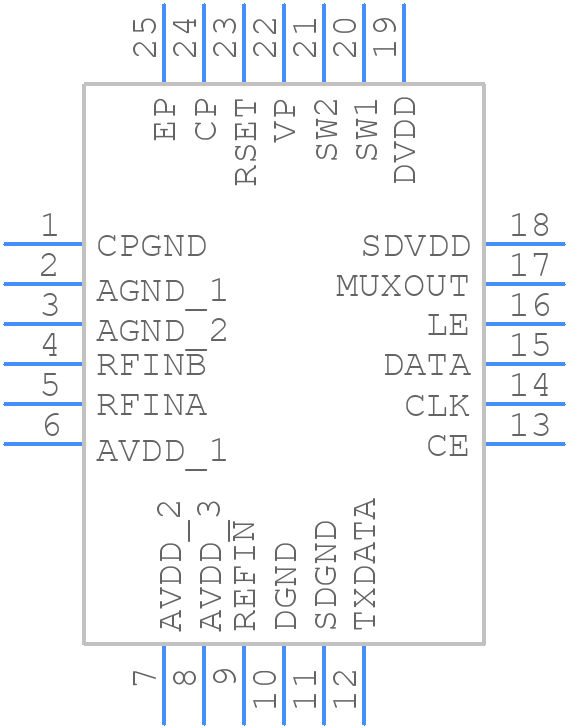

Symbol
ADF4169CCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4169CCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-24-10)
click to zoom
3D Models
ADF4169CCPZ - Analog Devices - 3D model - Quad Flat No-Lead - (CP-24-10)
click to zoom

ADF4169CCPZ Details

  • Manufacturer Part Number:

    ADF4169CCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-10

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADF4169CCPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the PLL loop filter components close to the device and use a star-configuration for the power supply connections.
  • The charge pump current can be optimized by adjusting the RSET resistor value. A lower RSET value increases the charge pump current, while a higher value decreases it. Consult the datasheet for the recommended RSET values for different charge pump currents.
  • The maximum frequency deviation is dependent on the PLL loop bandwidth and the modulation frequency. As a general rule, the frequency deviation should be limited to ±20% of the carrier frequency to ensure stable PLL operation.
  • The ADF4169CCPZ requires a power-up sequence to ensure proper initialization. Apply power to the device, then assert the EN pin high, followed by the CE pin high. Wait for the LOCK signal to go high before applying the modulation signal.
  • The ADF4169CCPZ is a high-power device and requires proper thermal management. Use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device. The maximum junction temperature is 150°C.
