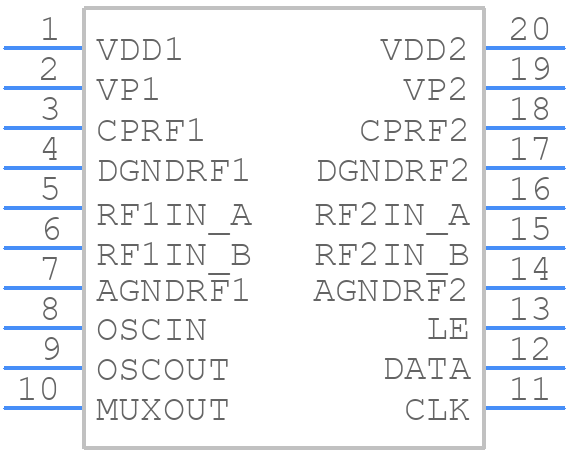

ADF4208BRUZ - Analog Devices

ADF4208BRUZ Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the ADF4208BRUZ to minimize noise and ensure optimal performance?
  A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the PLL loop filter components close to the device and use a low-ESR capacitor for the VCC pin. Avoid routing digital signals near the PLL loop filter components.
• How do I ensure the ADF4208BRUZ is properly powered up and initialized?
  Ensure a clean power-up sequence by applying VCC before applying a clock signal to the device. Initialize the device by writing to the SPI port with the correct register settings, and then enable the PLL by setting the PLL_EN bit.
• What is the recommended method for generating a stable clock signal for the ADF4208BRUZ?
  Use a high-quality crystal oscillator or a low-jitter clock source, such as a VCXO or a clock generator IC. Ensure the clock signal is within the specified frequency range and has minimal jitter and phase noise.
• How do I optimize the PLL loop filter component values for my specific application?
  Use the Analog Devices PLL Loop Filter Design Tool or a similar tool to calculate the optimal component values based on the desired PLL bandwidth, phase margin, and other application-specific requirements.
• What are the key considerations for thermal management when using the ADF4208BRUZ?
  Ensure good airflow around the device, and consider using a heat sink or thermal pad if the device is expected to operate at high temperatures or high power levels. Monitor the device temperature and adjust the thermal design as needed.
