ADF4212BRUZ-RL7 - Analog Devices

Description: Dual, Integer-N 0.5 GHz / 3.0 GHz PLL

Download ADF4212BRUZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

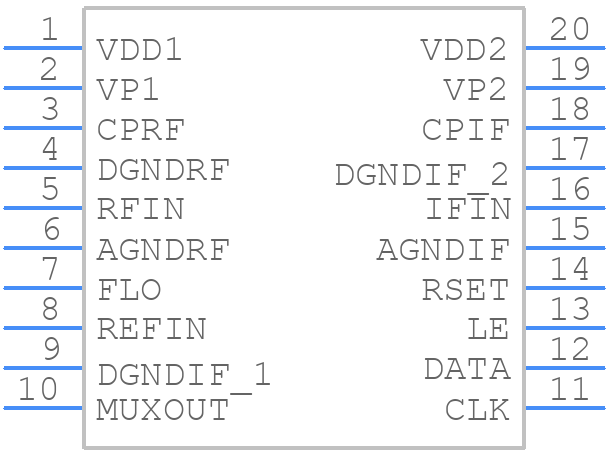

ADF4212BRUZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4212BRUZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-20 (TSSOP)
click to zoom
3D Models
ADF4212BRUZ-RL7 - Analog Devices - 3D model - Small Outline Packages - RU-20 (TSSOP)
click to zoom

ADF4212BRUZ-RL7 Details

  • Manufacturer Part Number:

    ADF4212BRUZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    4 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ADF4212BRUZ-RL7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the PLL loop filter components close to the device and use a low-ESR capacitor for the VCC pin. Avoid routing digital signals near the PLL loop filter components.
  • Ensure a stable voltage supply of 2.7V to 5.5V, with a maximum current consumption of 30mA. Decouple the VCC pin with a 10uF capacitor and a 100nF capacitor in parallel. Use a low-dropout regulator or a voltage regulator with low noise and high power supply rejection ratio (PSRR).
  • The recommended clock input frequency range is 10MHz to 200MHz. However, the device can operate with clock frequencies up to 250MHz, but with reduced phase noise performance.
  • Use the Analog Devices PLL Loop Filter Design Tool or a similar tool to optimize the component values based on your specific application's requirements, such as phase noise, loop bandwidth, and settling time.
  • The maximum operating temperature range is -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, and the phase noise may increase.
