ADF4212LBRUZ-RL7 - Analog Devices

Description: Phase Locked Loops - PLL Dual Power Freq Synthesizer

Download ADF4212LBRUZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

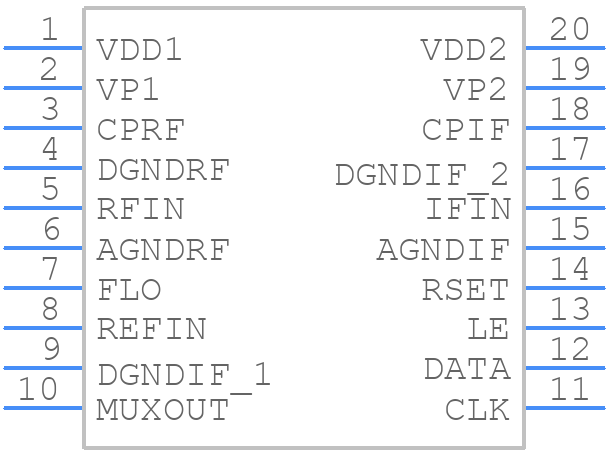

ADF4212LBRUZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4212LBRUZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RU-20)
click to zoom
3D Models
ADF4212LBRUZ-RL7 - Analog Devices - 3D model - Small Outline Packages - (RU-20)
click to zoom

ADF4212LBRUZ-RL7 Details

  • Manufacturer Part Number:

    ADF4212LBRUZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ADF4212LBRUZ-RL7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common mode filter to reduce noise.
  • Use the ADIsimPLL tool to design the loop filter. The tool helps to optimize the filter components for the desired phase noise performance and loop bandwidth.
  • The maximum power supply noise tolerance is ±10% of the nominal supply voltage. Use a low-dropout regulator (LDO) and a 10uF capacitor in parallel with a 100nF capacitor to filter out power supply noise.
  • Follow the recommended biasing and configuration guidelines in the datasheet. Ensure the charge pump voltage is set correctly, and the loop filter is properly configured for the desired frequency range.
  • The ADF4212LBRUZ-RL7 has a maximum junction temperature of 150°C. Ensure good airflow, use a heat sink if necessary, and follow the recommended PCB layout guidelines to prevent overheating.
