ADF5901ACPZ - Analog Devices

Description: RF IC VCO Radar 24GHz ~ 24.25GHz 32-LFCSP (5x5) 24 GHz VCO and PGA??with 2-Channel PA Output

Download ADF5901ACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

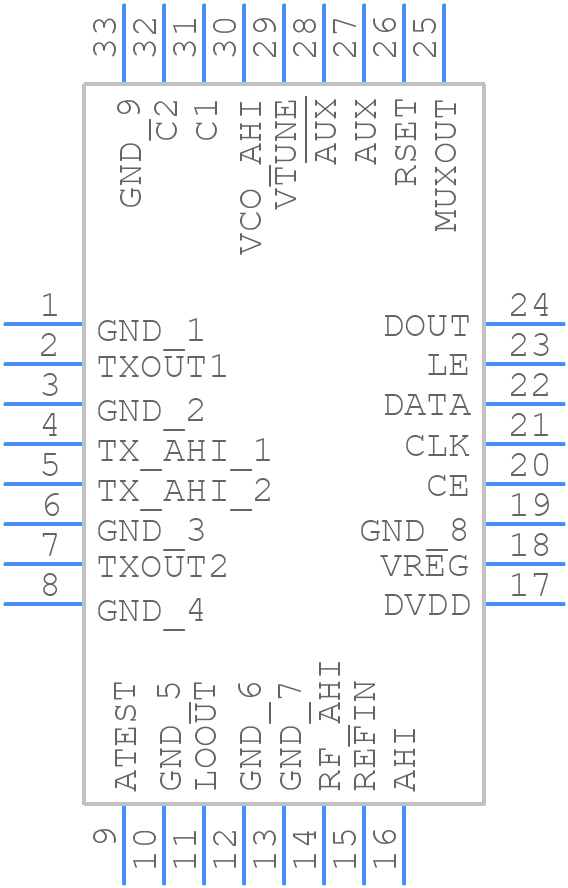

ADF5901ACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF5901ACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP] 5 mm × 5 mm Body and 0.75 mm Package Height (CP-32-12)
click to zoom
3D Models
ADF5901ACPZ - Analog Devices - 3D model - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP] 5 mm × 5 mm Body and 0.75 mm Package Height (CP-32-12)
click to zoom

ADF5901ACPZ Details

  • Manufacturer Part Number:

    ADF5901ACPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-09-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADF5901ACPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for power decoupling and place it close to the device.
  • To minimize power consumption, operate the device at the lowest possible frequency, use the lowest possible supply voltage, and disable the internal voltage regulator if an external regulator is used. Also, consider using the device's power-down mode when not in use.
  • The recommended input impedance for the ADF5901ACPZ is 50 ohms. This ensures that the device can accurately measure the input signal without any loading effects.
  • Calibration involves adjusting the device's internal gain and offset to match the specific application requirements. Use the device's built-in calibration registers to adjust the gain and offset. Consult the datasheet for specific calibration procedures.
  • The ADF5901ACPZ is rated for operation from -40°C to +125°C. However, the device's performance may degrade at extreme temperatures. Consult the datasheet for specific temperature-related performance characteristics.
