ADF5901WCCPZ-RL7 - Analog Devices

Description: 24 GHz VCO and PGA??with 2-Channel PA Output

Download ADF5901WCCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

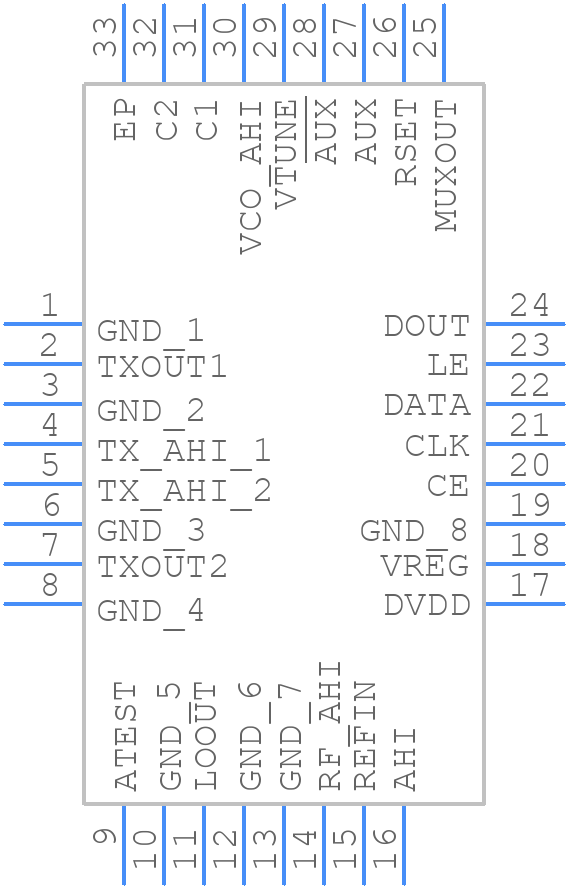

ADF5901WCCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF5901WCCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023-1
click to zoom
3D Models
ADF5901WCCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023-1
click to zoom

ADF5901WCCPZ-RL7 Details

  • Manufacturer Part Number:

    ADF5901WCCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADF5901WCCPZ-RL7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common mode filter to reduce noise.
  • Follow the calibration procedure outlined in the datasheet, and consider using the ADI-provided calibration software tool. Additionally, ensure that the device is operated within the recommended temperature range and power supply voltage.
  • The maximum allowable power supply noise is 100mV peak-to-peak. Exceeding this limit may affect the device's performance and accuracy.
  • The ADF5901WCCPZ-RL7 is rated for operation up to 125°C. However, the device's accuracy and reliability may be affected at high temperatures. Consult the datasheet for temperature-related specifications and consider using thermal management techniques.
  • Consult the datasheet and application notes for troubleshooting guidelines. Check the power supply, clock signal, and communication protocol. Use a logic analyzer or oscilloscope to debug the issue. If necessary, contact Analog Devices Inc. support for further assistance.
