ADF7020-1BCPZ-RL7 - Analog Devices

Description: RF Transceiver ASK/FSK 2.5V/3.3V 48-Pin LFCSP EP T/R

Download ADF7020-1BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

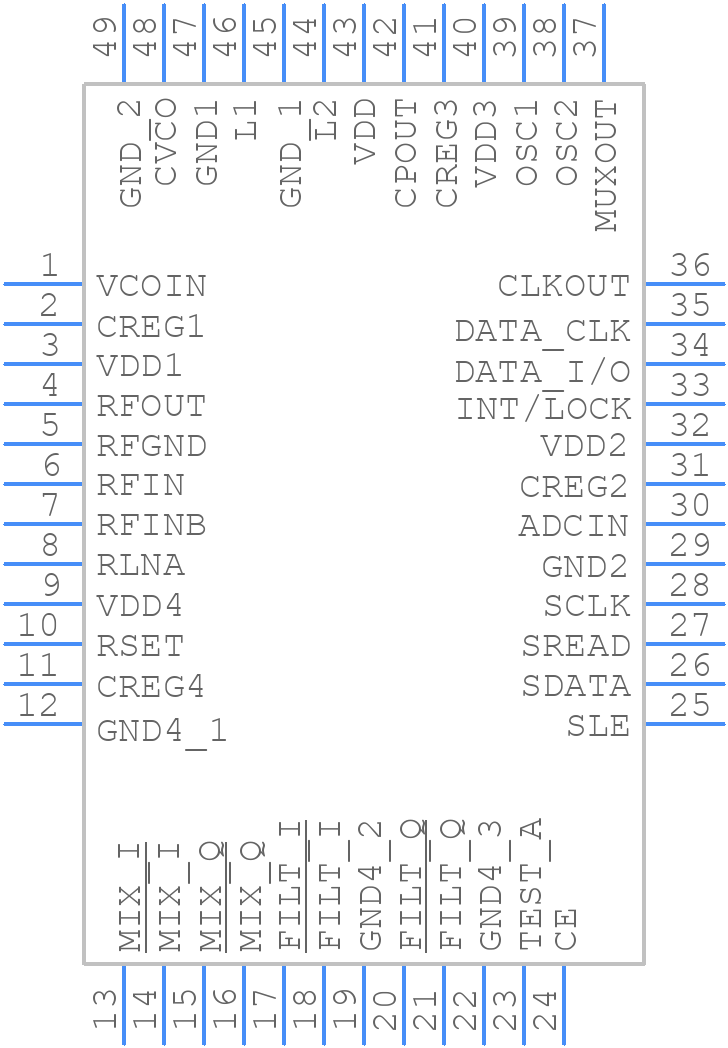

ADF7020-1BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF7020-1BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-48-5 (LFCSP)
click to zoom
3D Models
ADF7020-1BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-48-5 (LFCSP)
click to zoom

ADF7020-1BCPZ-RL7 Details

  • Manufacturer Part Number:

    ADF7020-1BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-5

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

ADF7020-1BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Ensure the input voltage is within the recommended range (2.7V to 3.6V), and decouple the input voltage with a 10uF capacitor. Also, ensure the output capacitor is at least 1uF and is placed close to the VREG pin.
  • The ADF7020 can achieve a maximum data rate of 1 Mbps in the 868 MHz and 915 MHz frequency bands, and up to 500 kbps in the 433 MHz frequency band.
  • Use the lowest possible frequency band, disable the transmitter and receiver when not in use, and use the power-down mode (PD pin) to reduce power consumption. Also, adjust the transmitter power output to the minimum required for your application.
  • A quarter-wave monopole antenna or a dipole antenna with a 50-ohm impedance is recommended. The antenna should be designed to operate at the desired frequency band and should be matched to the ADF7020's output impedance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF7020-1BCPZ-RL7 Overview

Use the download button to access the ADF7020-1BCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF70, or try a keyword search, such as Cellular Telephone Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
