Part Image

ADF7023-JBCPZ - Analog Devices

Description: FSK/GFSK/MSK/GMSK Transceiver

Download ADF7023-JBCPZ Model

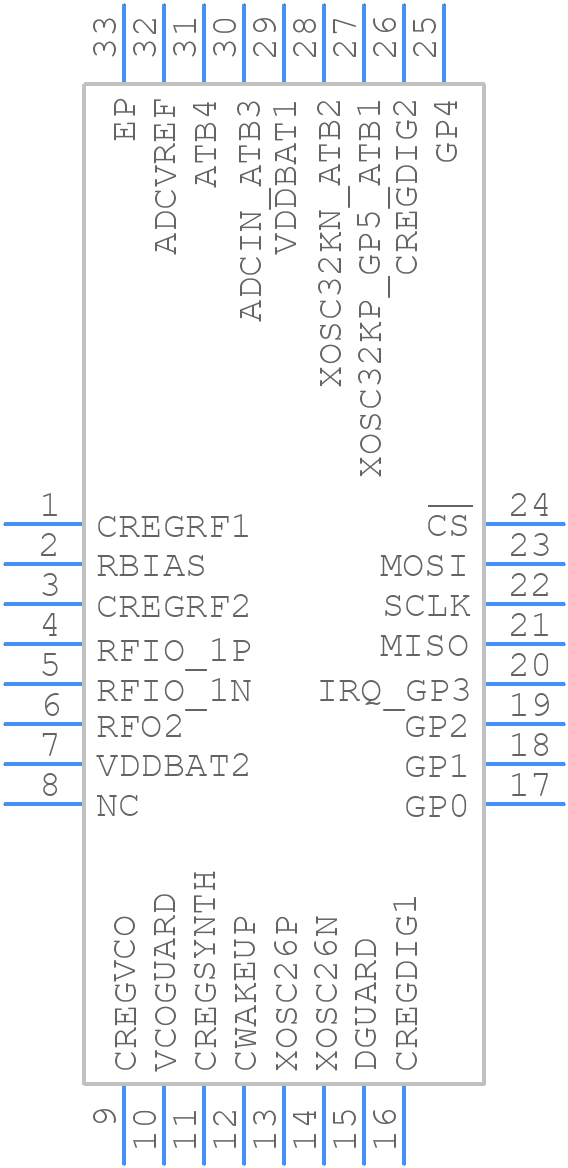

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADF7023-JBCPZ - Analog Devices PCB footprint - Other - Other - QFN50P500X500X80-33N
click to zoom
3D Models
ADF7023-JBCPZ - Analog Devices  - 3D model - Other - QFN50P500X500X80-33N
click to zoom

ADF7023-JBCPZ Details

  • Manufacturer Part Number:

    ADF7023-JBCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-13

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADF7023-JBCPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces short and away from digital signals. Use a common mode filter or a pi-filter to reduce EMI.
  • Adjust the TX_GAIN register to optimize the transmitter output power. Ensure the PA_VCC supply is stable and decoupled. Use a 50Ω load and a π-network or a series resistor to match the output impedance.
  • Use a 26 MHz crystal oscillator with a load capacitance of 10-20 pF. Ensure the crystal is connected between the XTAL_IN and XTAL_OUT pins, and the oscillator is enabled by setting the XTAL_EN bit in the CLOCK_CTRL register.
  • Use the Power Management Unit (PMU) to control the power modes. Set the PMU_CTRL register to enable low-power modes, such as Sleep or Hibernate. Use the WAKEUP_PIN to wake up the device from low-power modes.
  • Use the In-System Programming (ISP) interface to update the firmware. Ensure the ISP_EN pin is set high, and use a programming tool like the Analog Devices' Flash Programmer to update the firmware.
