ADF7030-1BSTZN-RL - Analog Devices

Description: ANALOG DEVICES - ADF7030-1BSTZN-RL - RF Transceiver IC, 863 MHz to 960 MHz, 2FSK/2GFSK, 4FSK/4GFSK, OOK, 360 Kbps, 2.2-3.6 V, LQFP-48

Download ADF7030-1BSTZN-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

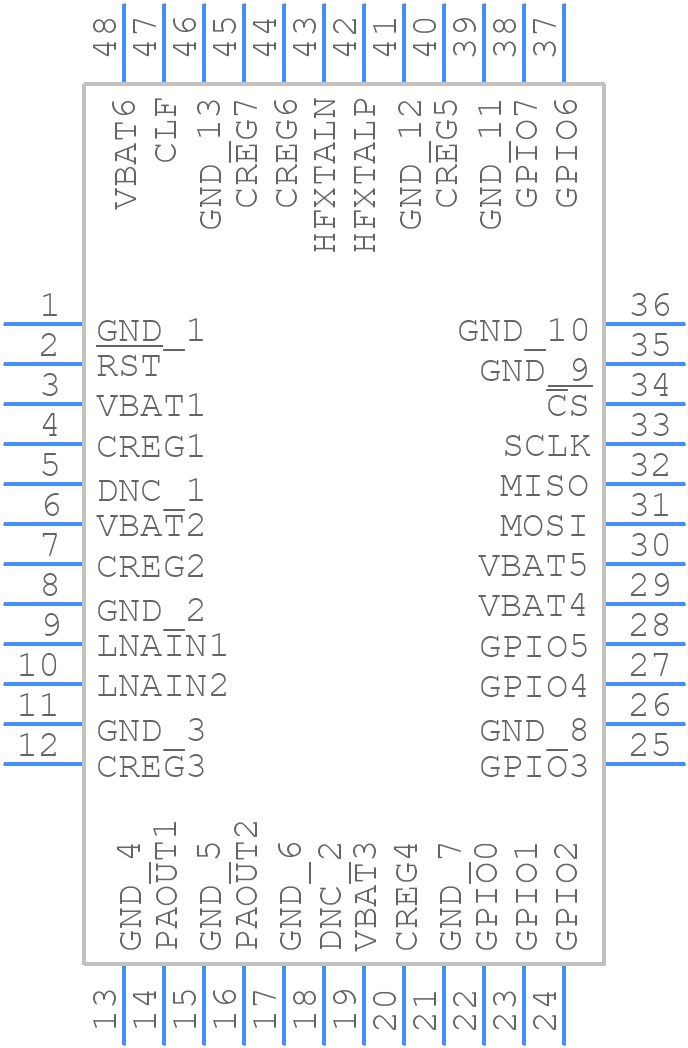

ADF7030-1BSTZN-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF7030-1BSTZN-RL - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - ST-48 (LQFP)
click to zoom
3D Models
ADF7030-1BSTZN-RL - Analog Devices - 3D model - Quad Flat Packages - ST-48 (LQFP)
click to zoom

ADF7030-1BSTZN-RL Details

  • Manufacturer Part Number:

    ADF7030-1BSTZN-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    ST-48

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

ADF7030-1BSTZN-RL Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout guide in the ADF7030-1BSTZN-RL evaluation board documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The ADF7030-1BSTZN-RL can be configured for different frequency bands using the SPI interface to program the device's registers. The specific configuration depends on the desired frequency band and can be found in the device's programming guide.
  • The maximum data rate of the ADF7030-1BSTZN-RL depends on the modulation scheme and frequency band used. According to the datasheet, the device can support data rates up to 30 Mbps in certain configurations.
  • The ADF7030-1BSTZN-RL has built-in features to mitigate interference and coexistence issues, such as adaptive frequency hopping and transmit power control. Additionally, the device can be configured to use frequency hopping spread spectrum (FHSS) or direct sequence spread spectrum (DSSS) modulation to minimize interference.
  • The power consumption of the ADF7030-1BSTZN-RL varies depending on the operating mode. According to the datasheet, the device can consume as low as 12 mA in receive mode and up to 250 mA in transmit mode. The exact power consumption depends on the specific configuration and usage scenario.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF7030-1BSTZN-RL Overview

Use the download button to access the ADF7030-1BSTZN-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF70, or try a keyword search, such as Other Telecom ICs
