ADF7242BCPZ - Analog Devices

Description: 2.4GHz Transceiver IEEE 802.15.4 LFCSP32 ADF7242BCPZ, RF Transceiver 2400 → 2483.5MHz, FSK, GFSK, 1.8 → 3.6 V 32-Pin LFSCP WQ

Download ADF7242BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

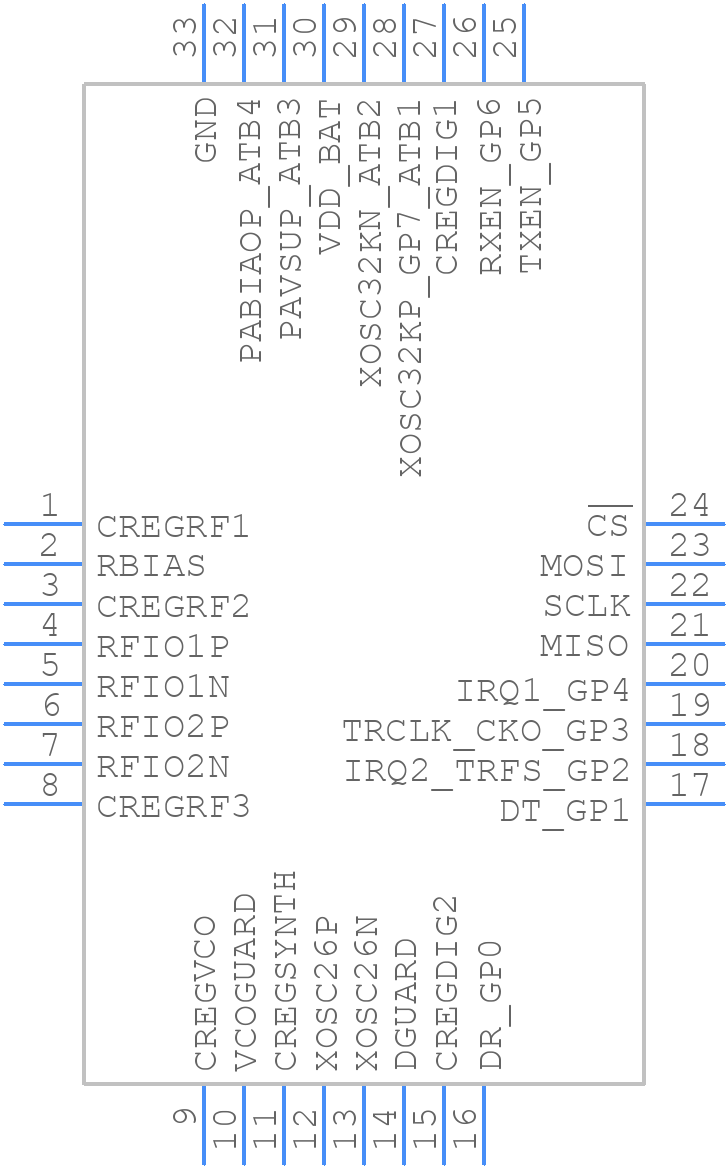

ADF7242BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF7242BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-11 (LFCSP)-1
click to zoom
3D Models
ADF7242BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-11 (LFCSP)-1
click to zoom

ADF7242BCPZ Details

  • Manufacturer Part Number:

    ADF7242BCPZ

  • Source Url Status Check Date:

    2013-05-01 14:56:36.142

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Package Description:

    5 X 5 MM, ROHS COMPLIANT, MO-220WHHD, LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-13

  • Country Of Origin:

    Singapore

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

ADF7242BCPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a star topology for the power supply connections. Also, ensure that the RF traces are short and shielded.
  • Optimization involves selecting the right frequency band, modulation scheme, and data rate. Also, adjust the transmitter power, receiver gain, and filter settings according to your application's requirements. Consult the datasheet and application notes for guidance.
  • The power supply should provide a stable 1.8V or 3.3V supply, depending on the device configuration. Ensure low noise and ripple, and use decoupling capacitors close to the device. A low-dropout regulator (LDO) or a switching regulator with a low noise output is recommended.
  • Use a logic analyzer or oscilloscope to monitor the device's digital interfaces and verify the clock and data signals. Check the transmitter and receiver settings, and ensure that the antenna is properly connected and matched. Consult the datasheet and application notes for troubleshooting guidelines.
  • The device operates from -40°C to 85°C. Ensure good thermal conductivity between the device and the PCB, and use thermal vias if necessary. Avoid overheating, and consider using a heat sink or thermal interface material if the device is expected to operate in high-temperature environments.
