ADG1204YRUZ-REEL - Analog Devices

Description: Analog Multiplexer Single 4:1 Automotive 14-Pin TSSOP T/R

Download ADG1204YRUZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

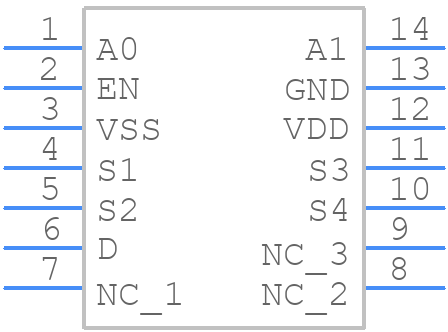

ADG1204YRUZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG1204YRUZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-14
click to zoom
3D Models
ADG1204YRUZ-REEL - Analog Devices - 3D model - Small Outline Packages - RU-14
click to zoom

ADG1204YRUZ-REEL Details

  • Manufacturer Part Number:

    ADG1204YRUZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-153AB-1, TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    RU-14

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES AT 12V SINGLE SUPPLY

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -16.5 V

  • Neg Supply Voltage-Min (Vsup):

    -13.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Off-state Isolation-Nom:

    85 dB

  • On-state Resistance Match-Nom:

    3.5 Ω

  • On-state Resistance-Max (Ron):

    190 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    0.045 A

  • Supply Current-Max (Isup):

    0.23 mA

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    110 ns

  • Switch-on Time-Max:

    85 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADG1204YRUZ-REEL Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout and land pattern in the ADG1204 datasheet, which can be found in the 'Layout' section. Additionally, the company offers a PCB layout tool, ADI's PCB Layout Tool, to help designers create an optimal layout for their specific application.
  • To ensure reliability and longevity in high-temperature applications, it is essential to follow proper PCB design and layout guidelines, use a suitable thermal interface material, and provide adequate heat sinking. Additionally, Analog Devices recommends following the recommended operating conditions and derating the device's power consumption accordingly.
  • The maximum allowable voltage on the VDD pin is 5.5V. Exceeding this voltage can cause permanent damage to the device. It is essential to ensure that the VDD pin is operated within the recommended voltage range to maintain optimal device performance and prevent damage.
  • To troubleshoot issues with the ADG1204YRUZ-REEL, start by reviewing the device's datasheet and application notes. Check the PCB layout and design for any potential issues, such as signal integrity problems or power supply noise. Use oscilloscopes and other diagnostic tools to analyze the device's behavior and identify the root cause of the issue. If necessary, contact Analog Devices' technical support for further assistance.
  • Yes, the ADG1204YRUZ-REEL is compatible with lead-free soldering processes. Analog Devices recommends following the JEDEC J-STD-020C standard for lead-free soldering, which specifies a peak reflow temperature of 260°C. It is essential to follow the recommended soldering conditions to ensure reliable device operation and prevent damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADG1204YRUZ-REEL Overview

Use the download button to access the ADG1204YRUZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG12, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
