ADG1206LYCPZ-REEL7 - Analog Devices

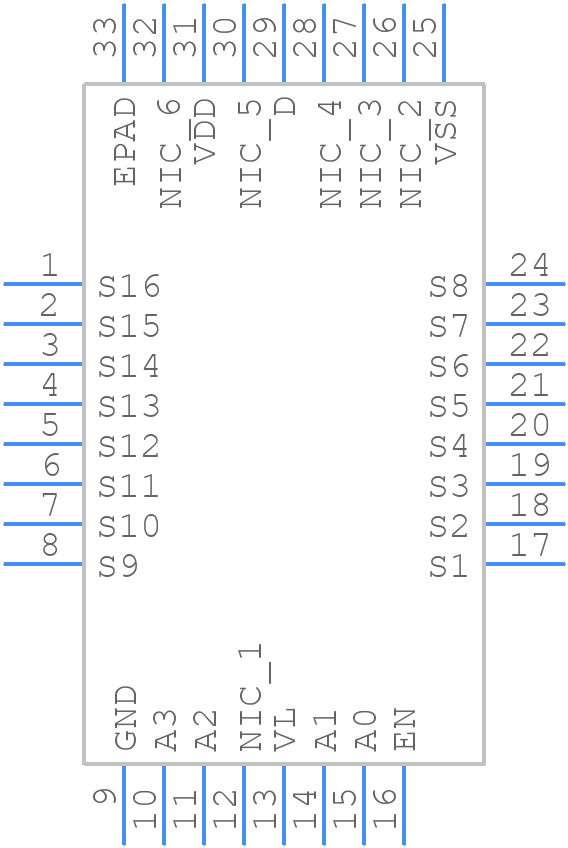

ADG1206LYCPZ-REEL7 Details

• Manufacturer Part Number:

  ADG1206LYCPZ-REEL7

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  LFCSP:LEADFRM CHIP SCALE

• Package Description:

  LFCSP-32

• Pin Count:

  32

• Manufacturer Package Code:

  LFCSP:LEADFRM CHIP SCALE

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2023-01-30

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Additional Feature:

  ALSO OPERATE WITH 12V SINGLE SUPPLY

• Analog IC - Other Type:

  SINGLE-ENDED MULTIPLEXER

• JESD-30 Code:

  S-XQCC-N32

• Length:

  5 mm

• Moisture Sensitivity Level:

  3

• Neg Supply Voltage-Max (Vsup):

  -16.5 V

• Neg Supply Voltage-Min (Vsup):

  -13.5 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Normal Position:

  NO

• Number of Functions:

  1

• Number of Terminals:

  32

• Off-state Isolation-Nom:

  79 dB

• On-state Resistance Match-Nom:

  3.5 Ω

• On-state Resistance-Max (Ron):

  270 Ω

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  COMMON OUTPUT

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC32,.2SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR, 7 INCH

• Seated Height-Max:

  0.8 mm

• Supply Current-Max (Isup):

  0.095 mA

• Supply Voltage-Max (Vsup):

  16.5 V

• Supply Voltage-Min (Vsup):

  13.5 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  196 ns

• Switch-on Time-Max:

  147 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  5 mm
