ADG1206YCPZ-REEL7 - Analog Devices

Description: Multiplexer Switch ICs Low Cap +/-15V16:1 iCMOS Mux

Download ADG1206YCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

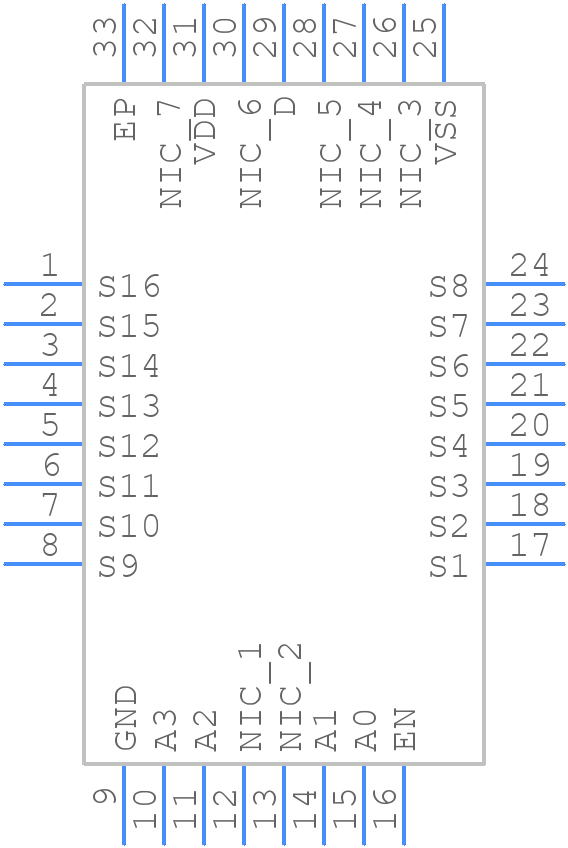

Symbol
ADG1206YCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG1206YCPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP] 5 mm × 5 mm Body and 0.75 mm Package Height (CP-32-7)
click to zoom
3D Models
ADG1206YCPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP] 5 mm × 5 mm Body and 0.75 mm Package Height (CP-32-7)
click to zoom

ADG1206YCPZ-REEL7 Details

  • Manufacturer Part Number:

    ADG1206YCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-7

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -16.5 V

  • Neg Supply Voltage-Min (Vsup):

    -13.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Off-state Isolation-Nom:

    85 dB

  • On-state Resistance Match-Nom:

    3.5 Ω

  • On-state Resistance-Max (Ron):

    200 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.42 mA

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    140 ns

  • Switch-on Time-Max:

    115 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADG1206YCPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG1206YCPZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, it's recommended to derate the device's power consumption and operating frequency at high temperatures.
  • The recommended power-up sequence for the ADG1206YCPZ-REEL7 is to power up the VDD supply first, followed by the VSS supply. This ensures that the internal biasing circuitry is properly initialized, and the device operates correctly.
  • To troubleshoot issues with the ADG1206YCPZ-REEL7, start by verifying the power supply voltages and ensuring that the device is properly configured. Check the input and output signals using an oscilloscope, and verify that the device is operating within its specified temperature range. If the issue persists, consult the datasheet and application notes for guidance, or contact Analog Devices' technical support.
  • The ADG1206YCPZ-REEL7 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and ensure that the PCB is properly grounded. Additionally, consider adding external ESD protection devices, such as TVS diodes, to further protect the device from ESD events.
