ADG1207YCPZ-REEL7 - Analog Devices

Description: Analog Multiplexer Dual 8:1 32-Pin LFCSP EP T/R

Download ADG1207YCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

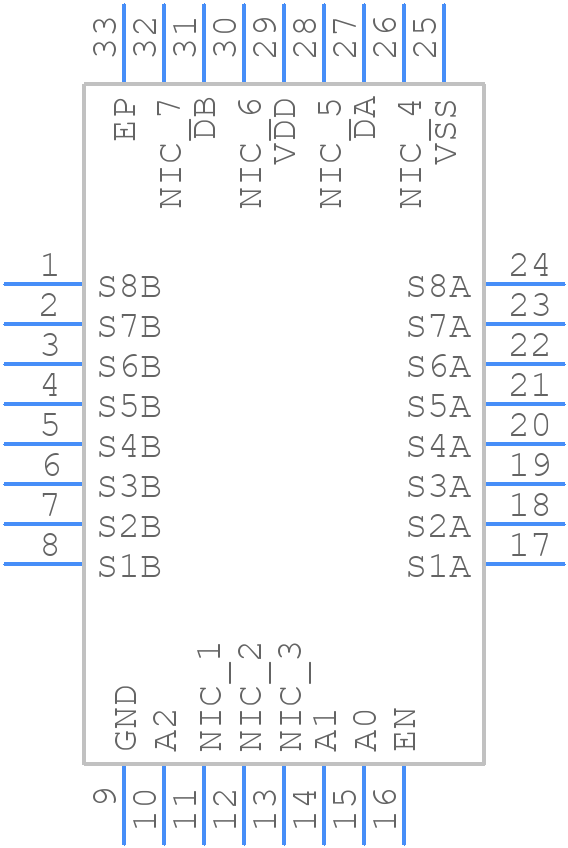

Symbol
ADG1207YCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG1207YCPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP]+
click to zoom
3D Models
ADG1207YCPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP]+
click to zoom

ADG1207YCPZ-REEL7 Details

  • Manufacturer Part Number:

    ADG1207YCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-7

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -16.5 V

  • Neg Supply Voltage-Min (Vsup):

    -13.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Off-state Isolation-Nom:

    85 dB

  • On-state Resistance Match-Nom:

    3.5 Ω

  • On-state Resistance-Max (Ron):

    200 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.42 mA

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    140 ns

  • Switch-on Time-Max:

    115 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    5 mm

ADG1207YCPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG1207YCPZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, it's recommended to derate the device's power consumption and operating frequency at high temperatures.
  • The recommended power-up sequence for the ADG1207YCPZ-REEL7 is to first apply the analog supply voltage (VCCA) and then the digital supply voltage (VCCD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent any potential latch-up conditions.
  • To troubleshoot issues with the ADG1207YCPZ-REEL7, start by verifying that the power supplies are correct and stable, and that the input signals are within the recommended specifications. Use an oscilloscope to check the output signals and verify that they are within the expected range. If the issue persists, consult the datasheet and application notes for guidance, and consider contacting Analog Devices' technical support team for further assistance.
  • The ADG1207YCPZ-REEL7 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device. This includes using an ESD wrist strap or mat, storing the device in an ESD-safe environment, and avoiding touching the device's pins or exposed internal components.
