ADG1209YCPZ-REEL7 - Analog Devices

Description: ANALOG DEVICES - ADG1209YCPZ-REEL7 - ANALOGUE MUX, 2 CH, 4:1, LFCSP-16

Download ADG1209YCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

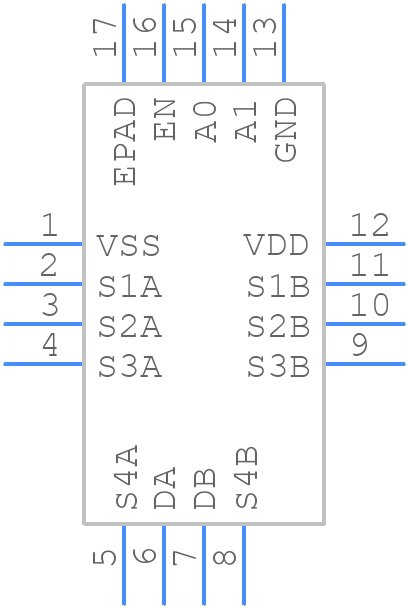

Symbol
ADG1209YCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG1209YCPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-23 (LFCSP)
click to zoom
3D Models
ADG1209YCPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-23 (LFCSP)
click to zoom

ADG1209YCPZ-REEL7 Details

  • Manufacturer Part Number:

    ADG1209YCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220VGGC, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-23

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATE WITH 12V SINGLE SUPPLY

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -16.5 V

  • Neg Supply Voltage-Min (Vsup):

    -13.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    85 dB

  • On-state Resistance Match-Nom:

    3.5 Ω

  • On-state Resistance-Max (Ron):

    200 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.33 mA

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    140 ns

  • Switch-on Time-Max:

    115 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADG1209YCPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG1209YCPZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The ADG1209YCPZ-REEL7 requires a single 3.3V or 5V power supply. It's recommended to use a low-noise, low-dropout regulator to power the device. Power sequencing is not critical, but it's recommended to power up the analog supply (VCCA) before the digital supply (VCCD) to prevent any potential latch-up conditions.
  • The ADG1209YCPZ-REEL7 can operate up to 250 MHz. However, the device's performance may degrade at higher frequencies due to increased power consumption, reduced signal-to-noise ratio, and potential oscillations. It's recommended to operate the device at frequencies below 100 MHz for optimal performance.
  • The ADG1209YCPZ-REEL7 has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device's junction temperature below 125°C. This can be achieved by using a heat sink, improving air flow, and reducing power consumption. Additionally, it's recommended to use a thermal interface material to improve heat transfer between the device and the heat sink.
  • The ADG1209YCPZ-REEL7 has built-in ESD protection diodes on all pins. However, it's still recommended to use external ESD protection devices, such as TVS diodes, to protect the device from electrostatic discharge. Additionally, it's recommended to use a latch-up prevention circuit, such as a resistor and capacitor in series, to prevent latch-up conditions.
