ADG1409YCPZ-REEL7 - Analog Devices

Description: ANALOG DEVICES - ADG1409YCPZ-REEL7 - +/-15V DIFF 4:1 MUX WITH RON MAX = 5OHM

Download ADG1409YCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

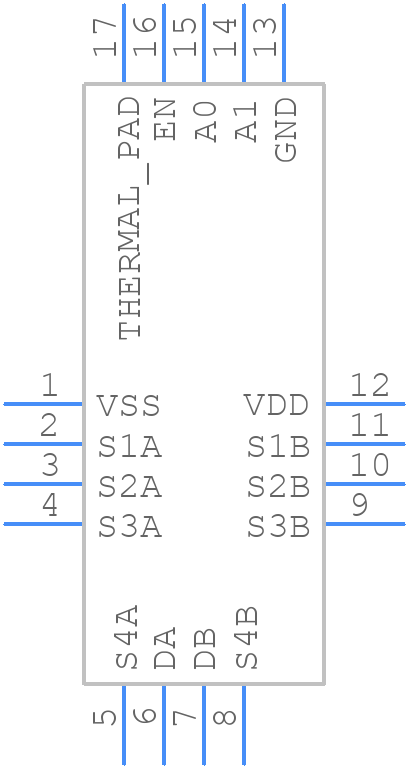

ADG1409YCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG1409YCPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-26 (LFCSP)
click to zoom
3D Models
ADG1409YCPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-26 (LFCSP)
click to zoom

ADG1409YCPZ-REEL7 Details

  • Manufacturer Part Number:

    ADG1409YCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, LEAD FREE, MO-220VGGC, LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-26

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -5.5 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NO

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    70 dB

  • On-state Resistance Match-Nom:

    0.78 Ω

  • On-state Resistance-Max (Ron):

    9 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    285 ns

  • Switch-on Time-Max:

    330 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADG1409YCPZ-REEL7 Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern for the ADG1409YCPZ-REEL7 can be found in the ADG1409 evaluation board documentation or by contacting Analog Devices' technical support. A good layout practice is to minimize the distance between the device and the analog signal sources, and to use a solid ground plane to reduce noise and EMI.
  • To ensure proper power and decoupling, use a low-ESR capacitor (e.g., 0.1 μF) between the VDD and GND pins, and a 10 μF capacitor between the VDD and GND pins for bulk decoupling. Additionally, use a low-dropout regulator (LDO) or a switching regulator with a low noise output to power the device.
  • The ADG1409YCPZ-REEL7 is a high-speed analog switch with a typical bandwidth of 200 MHz. However, the maximum operating frequency depends on the specific application and signal conditions. For high-frequency applications, it's recommended to consult with Analog Devices' technical support or perform thorough testing to ensure the device meets the required specifications.
  • To minimize the on-resistance (Rds(on)) of the ADG1409YCPZ-REEL7, ensure the device is operated within the recommended voltage range (1.8 V to 5.5 V) and that the input signals are within the specified voltage range. Additionally, use a low-impedance signal source and minimize the PCB trace impedance to reduce the overall resistance.
  • The ADG1409YCPZ-REEL7 has a human body model (HBM) ESD protection level of ±2 kV and a charged device model (CDM) ESD protection level of ±500 V. However, it's recommended to follow proper ESD handling and storage procedures to prevent damage to the device.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADG1409YCPZ-REEL7 Overview

Use the download button to access the ADG1409YCPZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG14, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
