ADG1423BCPZ-REEL7 - Analog Devices

Description: ANALOG DEVICES - ADG1423BCPZ-REEL7 - ANALOGUE SWITCH, DUAL, SPST, LFCSP-10

Download ADG1423BCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

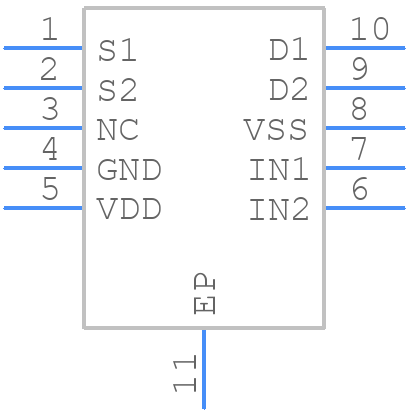

ADG1423BCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG1423BCPZ-REEL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 94
click to zoom
3D Models
ADG1423BCPZ-REEL7 - Analog Devices - 3D model - Small Outline No-lead - 94
click to zoom

ADG1423BCPZ-REEL7 Details

  • Manufacturer Part Number:

    ADG1423BCPZ-REEL7

  • Source Url Status Check Date:

    2013-05-01 14:56:36.542

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES ON PLUS OR MINUS 15V AND PLUS 12V

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -5.5 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NO/NC

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Off-state Isolation-Nom:

    60 dB

  • On-state Resistance Match-Nom:

    0.04 Ω

  • On-state Resistance-Max (Ron):

    7 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Signal Current-Max:

    0.25 A

  • Supply Current-Max (Isup):

    0.19 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    395 ns

  • Switch-on Time-Max:

    520 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADG1423BCPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG1423BCPZ-REEL7 should include a solid ground plane, separate analog and digital power planes, and minimize trace lengths and loops to reduce noise and EMI. Additionally, it's recommended to place decoupling capacitors close to the device and use a low-ESR capacitor for the VDD pin.
  • The ADG1423BCPZ-REEL7 requires a single 3.3V or 5V power supply. It's recommended to power the device with a low-noise, low-dropout regulator and to sequence the power-on in the following order: VDD, VSS, and then the digital inputs. Additionally, it's recommended to use a 0.1uF decoupling capacitor between VDD and VSS, and a 10uF capacitor between VDD and GND.
  • The ADG1423BCPZ-REEL7 has a maximum operating frequency of 200MHz. Operating the device at frequencies above 200MHz may result in reduced performance, increased power consumption, and potential device damage. It's recommended to operate the device within the specified frequency range to ensure optimal performance and reliability.
  • The ADG1423BCPZ-REEL7 has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. Thermal management techniques such as heat sinks, thermal vias, and thermal interface materials can be used to reduce the device temperature. Additionally, it's recommended to follow the recommended PCB layout and thermal design guidelines to minimize thermal resistance.
  • The ADG1423BCPZ-REEL7 has built-in ESD protection diodes on all pins. However, it's still recommended to follow proper ESD handling and storage procedures to prevent damage. Additionally, the device is designed to prevent latch-up, but it's still recommended to follow proper power sequencing and voltage ramp-up procedures to prevent latch-up conditions.
