ADG1423BRMZ-REEL7 - Analog Devices

Description: 2.1 Ω On Resistance, ±15 V/+12 V/±5 V iCMOS Dual SPST Switches −40°C to +125°C

Download ADG1423BRMZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

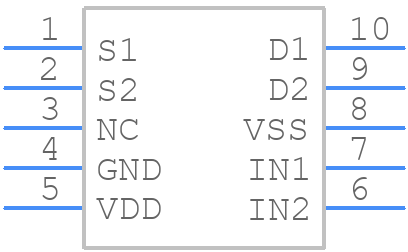

Symbol
ADG1423BRMZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG1423BRMZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-10
click to zoom
3D Models
ADG1423BRMZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RM-10
click to zoom

ADG1423BRMZ-REEL7 Details

  • Manufacturer Part Number:

    ADG1423BRMZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187BA, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO OPERATES ON PLUS OR MINUS 15V AND PLUS 12V

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -5.5 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NO/NC

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Off-state Isolation-Nom:

    60 dB

  • On-state Resistance Match-Nom:

    0.04 Ω

  • On-state Resistance-Max (Ron):

    7 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Signal Current-Max:

    0.185 A

  • Supply Current-Max (Isup):

    0.19 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    395 ns

  • Switch-on Time-Max:

    520 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

ADG1423BRMZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG1423BRMZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The ADG1423BRMZ-REEL7 requires a single 3.3V or 5V power supply. It's recommended to use a low-noise, low-dropout regulator to power the device. Power sequencing is not critical, but it's recommended to power up the device after the power supply has stabilized.
  • The ADG1423BRMZ-REEL7 can operate up to 100 kHz. However, the device's performance may degrade at higher frequencies due to increased power consumption and reduced signal-to-noise ratio. It's recommended to operate the device at frequencies below 10 kHz for optimal performance.
  • The ADG1423BRMZ-REEL7 has built-in ESD protection, but additional protection may be required depending on the application. It's recommended to use a TVS (Transient Voltage Suppressor) diode or a Zener diode for ESD protection. The recommended ESD protection devices are the SMF05C or the 1.5KE6.8A.
  • The ADG1423BRMZ-REEL7 has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device's junction temperature below 125°C. A thermal management strategy involving a heat sink or a thermal pad can be used to dissipate heat and reduce the junction temperature.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ADG1423BRMZ-REEL7 Overview

Use the download button to access the ADG1423BRMZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG14, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
