ADG1433YRUZ - Analog Devices

Description: ADG1433YRUZ, Analogue SPDT Switch Triple SPDT, 12V, 16-Pin, TSSOP

Download ADG1433YRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

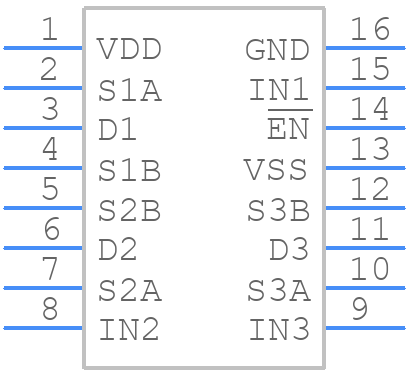

ADG1433YRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG1433YRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
ADG1433YRUZ - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

ADG1433YRUZ Details

  • Manufacturer Part Number:

    ADG1433YRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    CAN ALSO OPERATES AT +/-12 V AND +/-15 V SUPPLY

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -5.5 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NO/NC

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    70 dB

  • On-state Resistance Match-Nom:

    0.55 Ω

  • On-state Resistance-Max (Ron):

    9 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    0.115 A

  • Supply Current-Max (Isup):

    0.47 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    240 ns

  • Switch-on Time-Max:

    545 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADG1433YRUZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG1433YRUZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. Additionally, placing the device close to the analog signal sources and using shielding to reduce electromagnetic interference (EMI) can help optimize performance.
  • To ensure the ADG1433YRUZ operates within its specified temperature range, it's essential to provide adequate heat sinking, avoid overheating, and maintain a stable ambient temperature. You can also consider using thermal interface materials, heat sinks, or fans to dissipate heat. Always check the device's thermal characteristics and follow the recommended thermal management guidelines.
  • When selecting a voltage supply for the ADG1433YRUZ, consider the device's recommended operating voltage range, power consumption, and noise tolerance. Ensure the supply voltage is stable, regulated, and free from noise and ripple. Additionally, consider the power supply's output impedance, as it can affect the device's performance.
  • To troubleshoot issues with the ADG1433YRUZ, start by consulting the datasheet and application notes. Verify that the device is properly powered, and the input signals are within the specified ranges. Use oscilloscopes or logic analyzers to monitor the device's inputs and outputs. Check for noise, signal integrity, and power supply issues. If the problem persists, consider consulting with Analog Devices' technical support or seeking assistance from a qualified engineer.
  • The ADG1433YRUZ, like any electronic device, can be susceptible to radiation and EMI. To mitigate these effects, use shielding, grounding, and filtering techniques to reduce EMI. Ensure the device is properly packaged and sealed to prevent radiation-induced errors. Follow proper PCB design and layout practices to minimize radiation and EMI effects.
