ADG1434YCPZ-REEL7 - Analog Devices

Description: ANALOG DEVICES - ADG1434YCPZ-REEL7 - SWITCH, QUAD, SPDT, 20LFCSP

Download ADG1434YCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

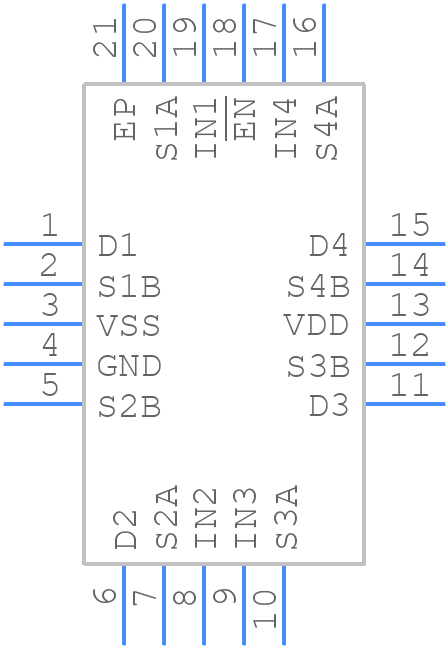

ADG1434YCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG1434YCPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-20-10 (LFCSP)
click to zoom
3D Models
ADG1434YCPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-20-10 (LFCSP)
click to zoom

ADG1434YCPZ-REEL7 Details

  • Manufacturer Part Number:

    ADG1434YCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-10

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    CAN ALSO OPERATES AT +/-12 V AND +/-15 V SUPPLY

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -5.5 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NO/NC

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Off-state Isolation-Nom:

    70 dB

  • On-state Resistance Match-Nom:

    0.55 Ω

  • On-state Resistance-Max (Ron):

    9 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Signal Current-Max:

    0.1 A

  • Supply Current-Max (Isup):

    0.47 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    240 ns

  • Switch-on Time-Max:

    545 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADG1434YCPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG1434YCPZ-REEL7 should include a solid ground plane, separate analog and digital power domains, and minimize trace lengths and loops to reduce noise and EMI. Additionally, it's recommended to place the device close to the analog signal sources and use shielding to reduce electromagnetic interference.
  • The ADG1434YCPZ-REEL7 requires a single 3.3V or 5V power supply. It's recommended to use a low-noise, low-dropout regulator to power the device. Power sequencing is not critical, but it's recommended to power up the device after the power supply has stabilized to prevent latch-up or other issues.
  • The ADG1434YCPZ-REEL7 can operate up to 100 MHz, but the maximum operating frequency depends on the specific application and signal conditions. Higher frequencies can lead to increased power consumption, reduced signal-to-noise ratio, and decreased device performance. It's recommended to consult the datasheet and application notes for specific guidance on operating frequency and signal integrity.
  • The ADG1434YCPZ-REEL7 has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. Thermal management techniques such as heat sinks, thermal vias, and airflow can help reduce the device temperature. Consult the datasheet and thermal management guidelines for specific recommendations.
  • The ADG1434YCPZ-REEL7 has built-in ESD protection diodes on all pins, but it's still recommended to follow proper ESD handling and storage procedures to prevent damage. Latch-up prevention measures include using a low-impedance power supply, minimizing voltage transients, and avoiding excessive current surges.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADG1434YCPZ-REEL7 Overview

Use the download button to access the ADG1434YCPZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG14, or try a keyword search, such as Multiplexers or Switches
