ADG1434YRUZ-REEL - Analog Devices

Description: Analogue Switch ICs +/-15V Quad SPDT Switch 5ohm

Download ADG1434YRUZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

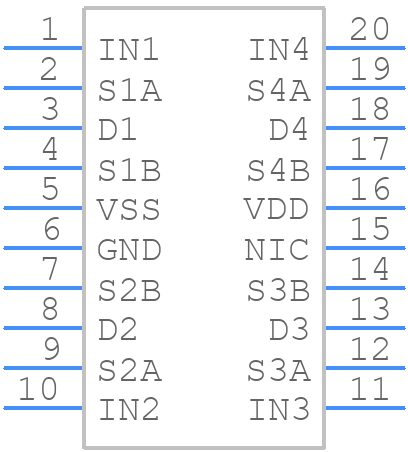

ADG1434YRUZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG1434YRUZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-20 (TSSOP)
click to zoom
3D Models
ADG1434YRUZ-REEL - Analog Devices - 3D model - Small Outline Packages - RU-20 (TSSOP)
click to zoom

ADG1434YRUZ-REEL Details

  • Manufacturer Part Number:

    ADG1434YRUZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    CAN ALSO OPERATES AT +/-12 V AND +/-15 V SUPPLY

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -5.5 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NO/NC

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Off-state Isolation-Nom:

    70 dB

  • On-state Resistance Match-Nom:

    0.55 Ω

  • On-state Resistance-Max (Ron):

    9 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    0.1 A

  • Supply Current-Max (Isup):

    0.47 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    240 ns

  • Switch-on Time-Max:

    545 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ADG1434YRUZ-REEL Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout and land pattern in the ADG1434 datasheet, which can be found in the 'Layout' section. Additionally, the company offers a PCB layout tool, ADI's PCB Layout Tool, to help designers create an optimal layout for their specific application.
  • To ensure reliability and quality, follow Analog Devices' recommended design and layout guidelines, use a robust PCB design with adequate power supply decoupling, and implement proper thermal management. Additionally, consider using a qualified manufacturer and following industry-standard testing and inspection procedures.
  • The ADG1434YRUZ-REEL has a maximum junction temperature (TJ) of 125°C. To ensure reliable operation, maintain a safe operating temperature by providing adequate heat sinking, using a thermally conductive PCB material, and minimizing power dissipation. Refer to the datasheet for thermal resistance and power dissipation information.
  • The ADG1434YRUZ-REEL is a commercial-grade product, but Analog Devices offers various high-reliability and safety-critical versions of the device, such as the ADG1434WBRUZ-RL or ADG1434YRUZ-RL7, which are designed for use in demanding applications. Contact Analog Devices for more information on these products.
  • Analog Devices provides a range of resources to help troubleshoot issues, including application notes, FAQs, and technical support. Start by reviewing the datasheet and application notes, then contact Analog Devices' technical support team for assistance with specific issues or design challenges.
