ADG1439BCPZ-REEL7 - Analog Devices

Description: ANALOG DEVICES - ADG1439BCPZ-REEL7 - ANALOGUE MULTIPLEXER, DUAL, 4:1, LFCSP20

Download ADG1439BCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

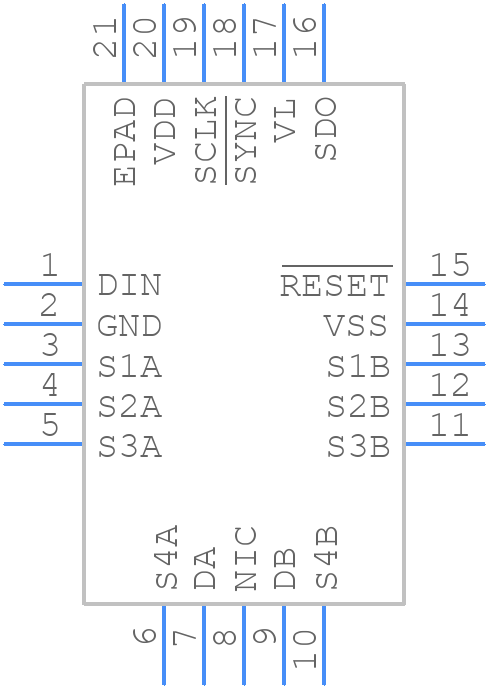

ADG1439BCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG1439BCPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-20-10 (LFCSP)
click to zoom
3D Models
ADG1439BCPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-20-10 (LFCSP)
click to zoom

ADG1439BCPZ-REEL7 Details

  • Manufacturer Part Number:

    ADG1439BCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220VGGD-1, LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-10

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -16.5 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Off-state Isolation-Nom:

    70 dB

  • On-state Resistance Match-Nom:

    0.6 Ω

  • On-state Resistance-Max (Ron):

    25 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Signal Current-Max:

    0.03 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    350 ns

  • Switch-on Time-Max:

    350 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADG1439BCPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG1439BCPZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, it's recommended to derate the device's power consumption and operating frequency at high temperatures.
  • The ADG1439BCPZ-REEL7 has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding oneself before handling the device, and using ESD-protective packaging and storage.
  • To troubleshoot issues with the ADG1439BCPZ-REEL7, start by reviewing the datasheet and application notes to ensure proper usage and configuration. Then, use a logic analyzer or oscilloscope to capture and analyze the device's signals. Check for proper power supply voltage, clock frequency, and signal integrity. If the issue persists, contact Analog Devices' technical support for further assistance.
  • For radiation-hardened or high-reliability applications, it's essential to follow Analog Devices' guidelines for radiation testing and qualification. Additionally, consider using a radiation-hardened version of the device, if available, and follow proper design and testing procedures to ensure the device meets the required reliability and radiation tolerance standards.
