ADG2188YCPZ-REEL7 - Analog Devices

Description: Analog & Digital Crosspoint ICs I2C CMOS 8 x 8 Unbuffered

Download ADG2188YCPZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

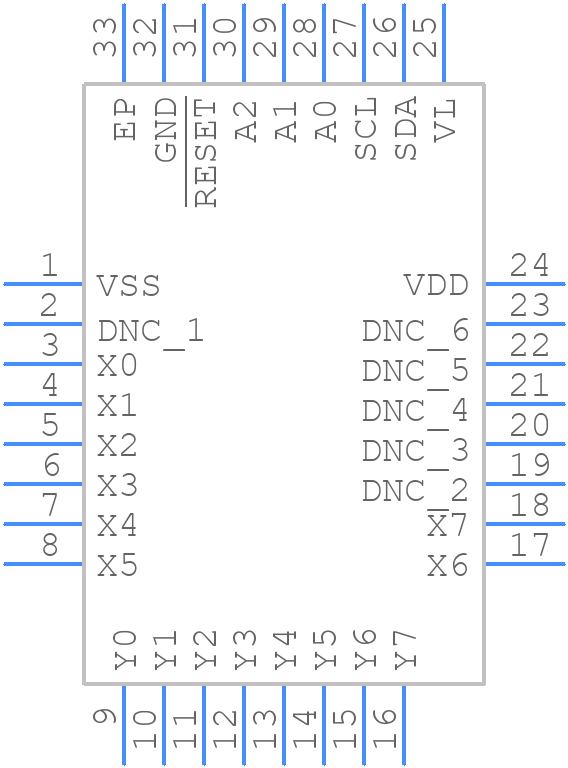

ADG2188YCPZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG2188YCPZ-REEL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ADG2188YCPZ-REEL7
click to zoom
3D Models
ADG2188YCPZ-REEL7 - Analog Devices - 3D model - Quad Flat No-Lead - ADG2188YCPZ-REEL7
click to zoom

ADG2188YCPZ-REEL7 Details

  • Manufacturer Part Number:

    ADG2188YCPZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-7

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    CAN ALSO OPERATES AT +/-12 V SUPPLY

  • Analog IC - Other Type:

    CROSS POINT SWITCH

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -5.5 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Off-state Isolation-Nom:

    64 dB

  • On-state Resistance Match-Nom:

    4.5 Ω

  • On-state Resistance-Max (Ron):

    75 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Signal Current-Max:

    0.09 A

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    250 ns

  • Switch-on Time-Max:

    200 ns

  • Switching:

    MAKE-BEFORE-BREAK

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

ADG2188YCPZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG2188YCPZ-REEL7 should include a solid ground plane, separate analog and digital power planes, and minimize trace lengths and loops to reduce noise and EMI. Additionally, it's recommended to place the device close to the analog signal sources and use shielding to reduce electromagnetic interference.
  • The ADG2188YCPZ-REEL7 requires a single 3.3V or 5V power supply. It's recommended to use a low-noise, low-dropout regulator to power the device. Power sequencing is not critical, but it's recommended to power up the analog supply (VCCA) before the digital supply (VCCD) to ensure proper device operation.
  • The ADG2188YCPZ-REEL7 can operate up to 100 MHz, but the maximum operating frequency depends on the specific application and signal conditions. Higher frequencies can lead to increased power consumption, reduced signal-to-noise ratio, and decreased device performance. It's recommended to consult the datasheet and application notes for specific guidance on operating frequency and signal conditioning.
  • To troubleshoot common issues with the ADG2188YCPZ-REEL7, start by verifying the power supply and signal connections. Check for proper termination, signal attenuation, and impedance matching. Use an oscilloscope to visualize the signal and identify distortion or noise sources. Consult the datasheet and application notes for specific troubleshooting guidance and consider using simulation tools to model and analyze the circuit.
  • The ADG2188YCPZ-REEL7 has a maximum junction temperature of 150°C. To ensure reliable operation in high-temperature environments, use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device. Consider using a thermally enhanced package or a device with a higher temperature rating if operating in extreme environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADG2188YCPZ-REEL7 Overview

Use the download button to access the ADG2188YCPZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADG21, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
