ADG426BRS-REEL7 - Analog Devices

Description: Multiplexer Switch ICs 16 CH.LATCHABLE MUX -I.C.

Download ADG426BRS-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

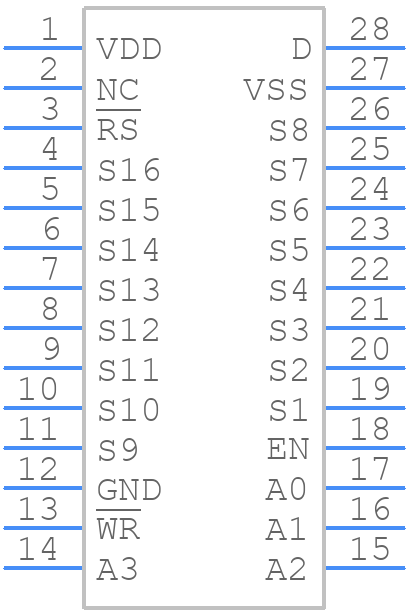

ADG426BRS-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG426BRS-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-28 (SSOP)
click to zoom
3D Models
ADG426BRS-REEL7 - Analog Devices - 3D model - Small Outline Packages - RS-28 (SSOP)
click to zoom

ADG426BRS-REEL7 Details

  • Manufacturer Part Number:

    ADG426BRS-REEL7

  • Source Url Status Check Date:

    2013-05-01 14:56:37.345

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RS-28

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    CAN ALSO OPERATE WITH SINGLE 12V SUPPLY

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e0

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -16.5 V

  • Neg Supply Voltage-Min (Vsup):

    -13.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Off-state Isolation-Nom:

    75 dB

  • On-state Resistance Match-Nom:

    4 Ω

  • On-state Resistance-Max (Ron):

    80 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Signal Current-Max:

    0.02 A

  • Supply Current-Max (Isup):

    0.5 mA

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    150 ns

  • Switch-on Time-Max:

    150 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn85Pb15)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

ADG426BRS-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for ADG426BRS-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the reliability of ADG426BRS-REEL7 in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and minimizing power dissipation. Additionally, the device should be operated within its recommended temperature range of -40°C to +125°C.
  • The recommended power-up sequence for ADG426BRS-REEL7 is to first apply the analog supply voltage (VDD) and then the digital supply voltage (VSS). This ensures that the internal circuitry is properly initialized and minimizes the risk of latch-up or other unexpected behavior.
  • To troubleshoot issues with ADG426BRS-REEL7, start by verifying that the device is properly powered and that the input signals are within the recommended voltage ranges. Use an oscilloscope to monitor the input and output signals, and check for any signs of noise or distortion. If the issue persists, consult the datasheet and application notes for guidance on troubleshooting and debugging.
  • The ADG426BRS-REEL7 is not specifically designed or tested for radiation-hardened applications. If radiation hardness is a requirement, it's recommended to consult with Analog Devices Inc or a qualified radiation effects expert to determine the suitability of the device for the specific application.
