ADG426BRSZ-REEL - Analog Devices

Description: Signal Switches, Multiplexers, Decoders SSOP-28 RoHS

Download ADG426BRSZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

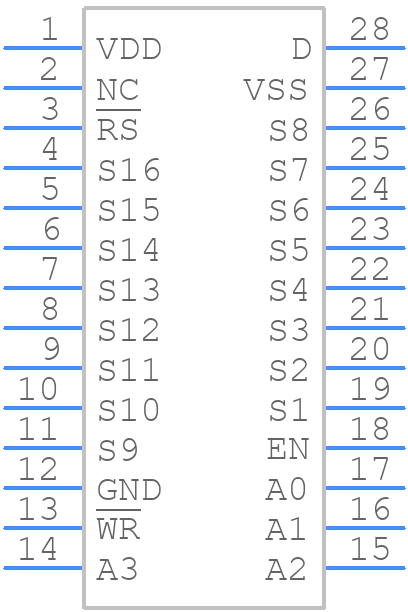

ADG426BRSZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADG426BRSZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-28 (SOIC)
click to zoom
3D Models
ADG426BRSZ-REEL - Analog Devices - 3D model - Small Outline Packages - RS-28 (SOIC)
click to zoom

ADG426BRSZ-REEL Details

  • Manufacturer Part Number:

    ADG426BRSZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RS-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    CAN ALSO OPERATE WITH SINGLE 12V SUPPLY

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -16.5 V

  • Neg Supply Voltage-Min (Vsup):

    -13.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Off-state Isolation-Nom:

    75 dB

  • On-state Resistance Match-Nom:

    4 Ω

  • On-state Resistance-Max (Ron):

    80 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Signal Current-Max:

    0.02 A

  • Supply Current-Max (Isup):

    0.5 mA

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    150 ns

  • Switch-on Time-Max:

    150 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    5.3 mm

ADG426BRSZ-REEL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADG426BRSZ-REEL involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and ensuring good airflow around the device. Additionally, it's recommended to derate the device's power consumption and operating frequency at high temperatures.
  • The ADG426BRSZ-REEL has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding oneself before handling the device, and using an ESD wrist strap or mat.
  • To troubleshoot issues with the ADG426BRSZ-REEL, start by reviewing the device's datasheet and application notes to ensure proper usage. Then, use a logic analyzer or oscilloscope to monitor the device's inputs and outputs, and check for any signs of electrical overstress or damage. If the issue persists, contact Analog Devices' technical support for further assistance.
  • The ADG426BRSZ-REEL is a commercial-grade device and is not specifically designed for radiation-hardened applications. However, it's built with latch-up protection and has a high level of radiation tolerance. For specific radiation requirements, it's recommended to consult with Analog Devices' technical support or consider using a radiation-hardened alternative.
